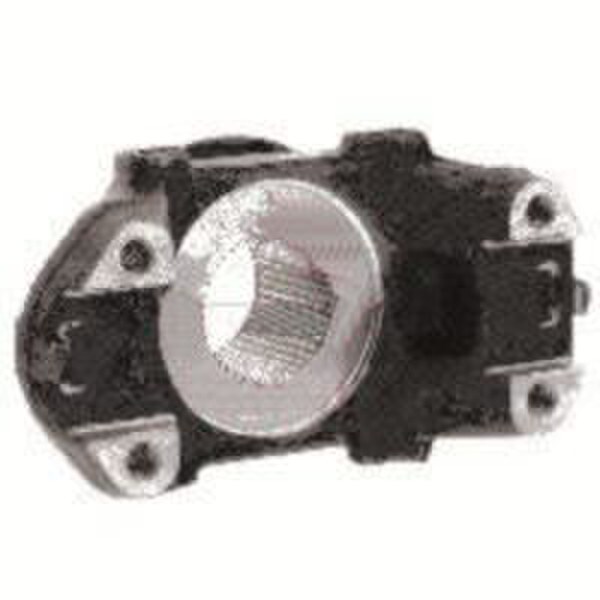

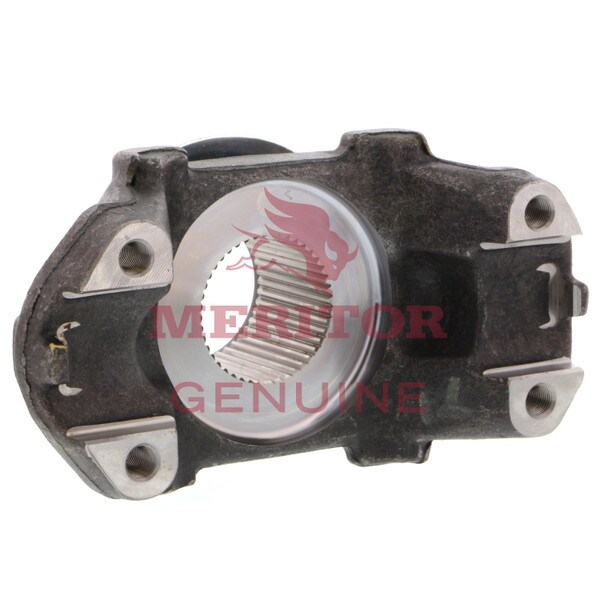

Meritor Genuine END YOKE - 25WYS361A
Details
END YOKE
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Cross References
20504507, 210869, 225WYS36 1A, 25WYS36, 25WYS36-1A, 25WYS361A, 25WYS361A-RI, 25WYS361ARI, 8235-25WYS361A, 823525WYS361A, ATI25WYS361A, S-16977, S16977, TDA25WYS361A
Specifications
| Series | 2295 |
| Joint Angle | 8250 |
| Depth | 0.24 in. |
| Diameter | 2.06 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.24 in. |
| Number Of Splines / Teeth | 44 |
| MPN | 25WYS361A |
| UPC | 737238797722 |
| Width | 7.4 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | END YOKE |
Features
- Bearing Cap Diameter: 2.06 in.
- Counter Bore Depth: 0.24 in.
- Deflector: DEFR50-24
- Face To End: 4.81 in.
- Hub Diameter: 3.00 in.
- Joint Angle: 30 degrees
- Series: RPL25
- Spline Diameter: 2.274 in.
- Spline Length: 2.50 in.
- Use Kit: KIT RPL 25 20
- Use U-Joint Kit: CP25RPLS
- Yoke Dimension Across Nibbs: 8.38 in.
Includes
END YOKE
Warranty
Warranty depends on application and product type. Contact us to learn more.
