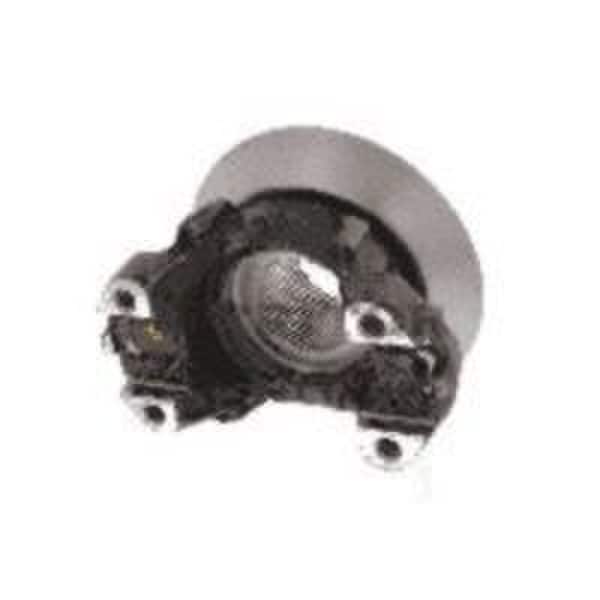

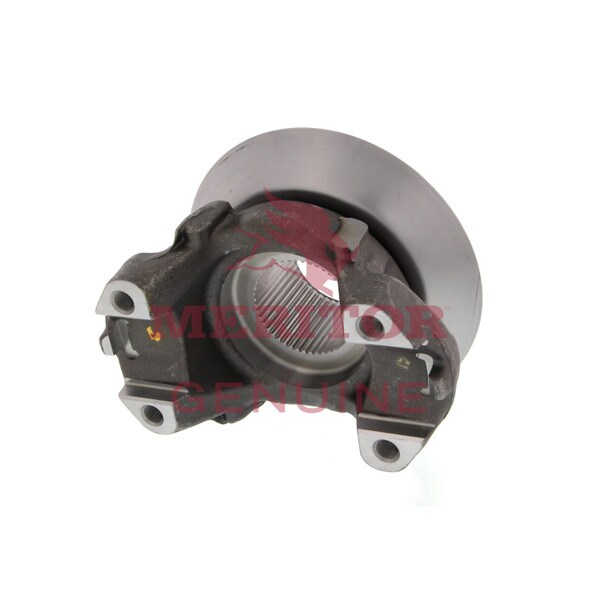

Meritor Genuine END YOKE - 20WYS384A
Details
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 20WYS384A is the ideal way to make sure you have the replacement part you've been looking for.
Cross References
20504477, 20WYS38, 20WYS38-1A, 20WYS38-4A, 20WYS381A, 20WYS384A, 20WYS384A-RI, 20WYS384ARI, 220WYS38 4A, 3901647, 8235-20WYS384A, 823520WYS384A, ATI20WYS384A, N20WYS38-4A, S-18420, S18420, TDA20WYS384A
Specifications
| Series | 2293 |
| Joint Angle | 8267 |
| Depth | 0.14 in. |
| Diameter | 2.06 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.14 in. |
| Number Of Splines / Teeth | 46 |
| MPN | 20WYS384A |
| UPC | 737238870739 |
| Width | 7.4 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | END YOKE |
Features
- Bearing Cap Diameter: 2.06 in.
- Counter Bore Depth: 0.14 in.
- Deflector: DEFR64-3
- Face To End: 4.90 in.
- Hub Diameter: 3.25 in.
- Joint Angle: 24 degrees
- Series: RPL20
- Spline Diameter: 2.390 in.
- Spline Length: 2.32 in.
- Use Kit: KIT RPL 25 20
- Use U-Joint Kit: CP20RPLS
- Yoke Dimension Across Nibbs: 7.06 in.
Includes
Meritor Genuine END YOKE - 20WYS384A
