Meritor Genuine End Yoke - 20WYS325A
Details

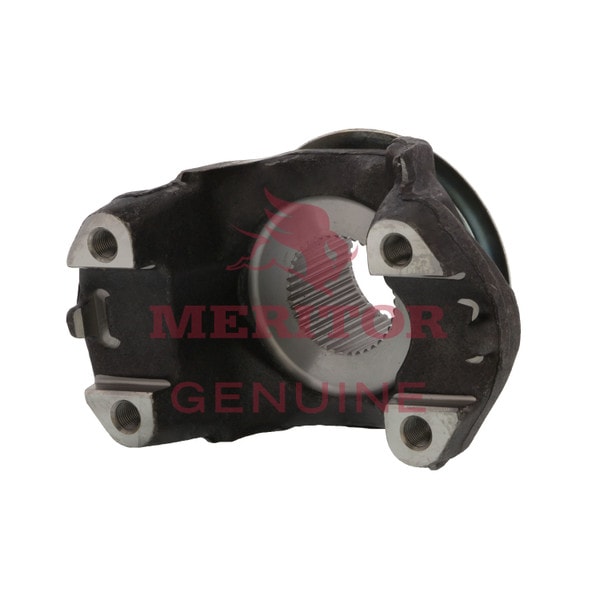

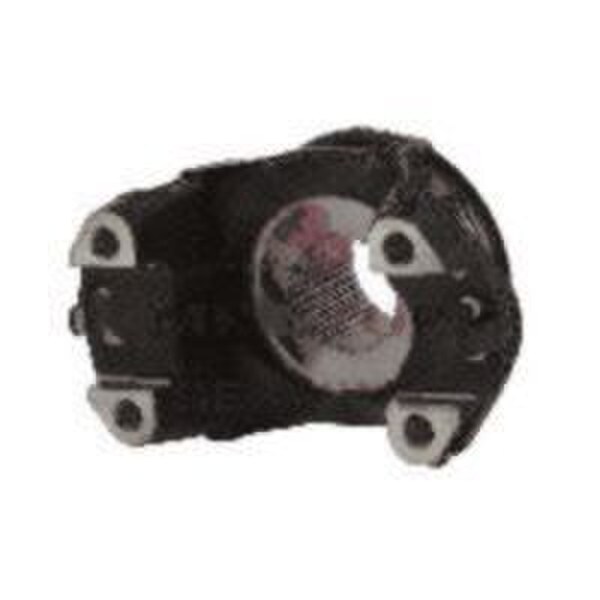

END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 20WYS325A is the ideal way to make sure you have the replacement part you've been looking for.
Cross References
20WYS32, 20WYS325A, 220WYS32 5A, 8235-20WYS325A, 823520WYS325A, ATI20WYS325A, S-16979, S16979, TDA20WYS325A
Specifications
| Brand Label: | Mertr |
| Item-Level GTIN: | 737238797586 |
| Hazardous Material Code (Y/N): | N |
| Item Quantity Size UOM: | Ea |
| Description (Short Product Description): | End Yoke |
| Face To End: | 4.85 In. |
| Yoke Dimension Across Nibbs: | 7.06 In. |
| Weight: | 11.75 |
| Use U-Joint Kit: | Cp20Rpls |
| Use Kit: | Kit Rpl 25 20 |
| Spline Length: | 2.28 In. |
| Spline Diameter: | 2.024 In. |
| Series: | Rpl20 |
| Joint Angle: | 32 Degrees |
| Number Of Splines: | 39I |
| Bearing Cap Diameter: | 2.06 In. |
| Brand: | Meritor Genuine |
| Deflector: | Defr50-24 |
| Hub Diameter: | 3.00 In. |
| Counter Bore Depth: | 0.25 In. |
