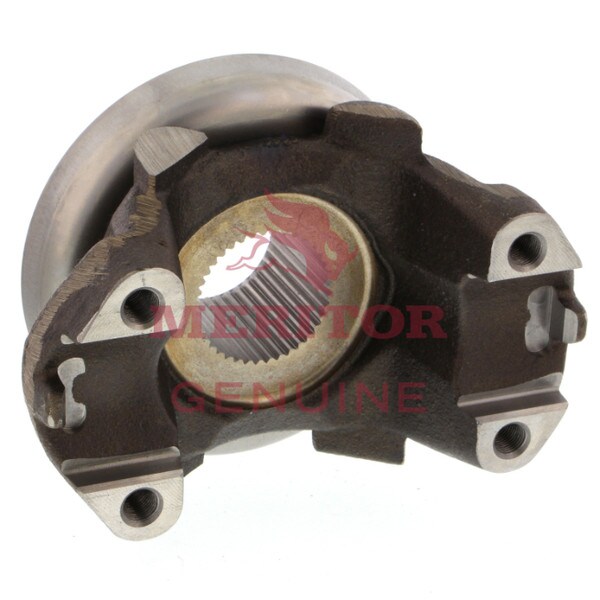

Meritor Genuine END YOKE - 20WYS3217A
Details
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 20WYS3217A is the ideal way to make sure you have the replacement part you've been looking for.
Cross References
20WYS32, 20WYS32-17, 20WYS32-17A, 20WYS32-1A, 20WYS3217, 20WYS3217A, 20WYS3217A-RI, 20WYS3217ARI, 20WYS321A, 21335267, 220WYS32 17A, 2501144C91, 3304440, 8235-20WYS3217A, 823520WYS3217A, ATI20WYS3217A, S-H023647, TDA20WYS3217A
Specifications
| Series | 2293 |
| Joint Angle | 8251 |
| Depth | 0.09 in. |
| Diameter | 2.06 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.09 in. |
| Number Of Splines / Teeth | 39 |
| MPN | 20WYS3217A |
| UPC | 680502142943 |
| Width | 7.4 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | END YOKE |
Features
- Bearing Cap Diameter: 2.06 in.
- Counter Bore Depth: 0.09 in.
- Deflector: DEFR64
- Face To End: 4.85 in.
- Hub Diameter: 3.00 in.
- Joint Angle: 32 degrees
- Series: RPL20
- Spline Diameter: 2.024 in.
- Spline Length: 2.31 in.
- Use Kit: KIT RPL 25 20
- Use U-Joint Kit: CP20RPLS
- Yoke Dimension Across Nibbs: 7.06 in.
Includes
Meritor Genuine END YOKE - 20WYS3217A
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
