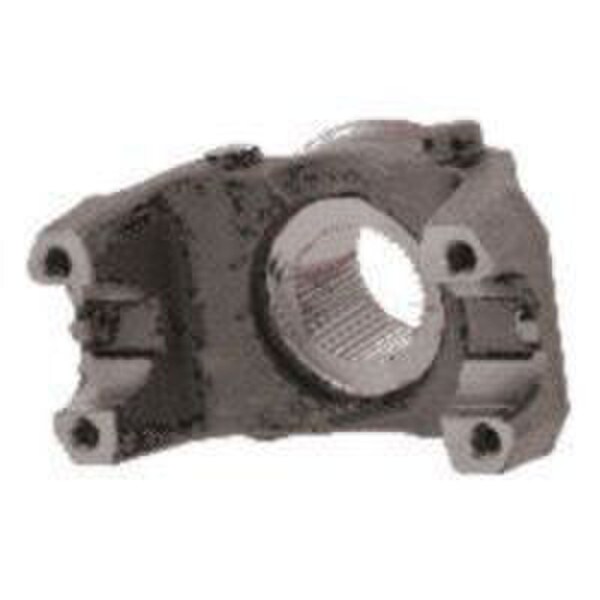

Meritor Genuine END YOKE-ES - 18N4035561X
Details
*THIS PART IS NON-RETURNABLE*
Product Description
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE-ES - 18N4035561X is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 5.16 in.
- Counter Bore Depth: 0.14 in.
- Deflector: DEFR56-12
- Distance Between Nibbs: 7.63 in.
- Hub Diameter: 3.25 in.
- Joint Angle: 32 degrees
- Kit Mtg. Holes: TH
- Series: 18N
- Spline Diameter: 2.390 in.
- Spline Length: 2.32 in.
- Use Kit: KT17SB
- Use U-Joint Kit: R676X
Includes
Meritor Genuine END YOKE-ES - 18N4035561X
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
2 18N-4-03556-1X
Specifications
| Series | 2292 |
| Joint Angle | 8251 |
| Depth | 0.14 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.14 in. |
| Center To End | 5.16 in. |
| Number Of Splines / Teeth | 46 |
| MPN | 18N4035561X |
| UPC | 884879746937 |
| Width | 9.35 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.15 in. |
| Benefits | END YOKE-ES |
