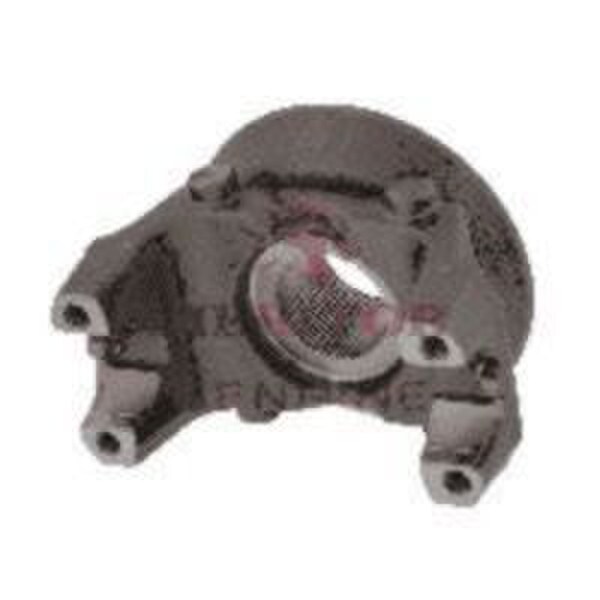

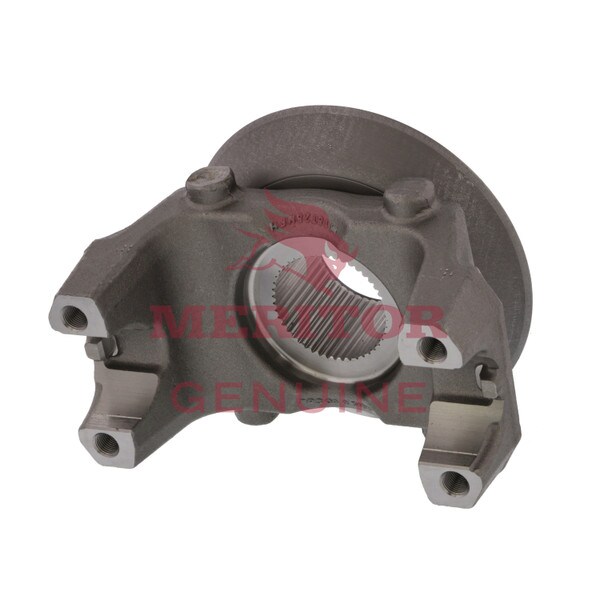

Meritor Genuine END YOKE - 18TYS3827A5
Details
Product Description
END YOKE - 18N EASY SERVICE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 18TYS3827A5 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 5.16 in.
- Counter Bore Depth: 0.14 in.
- Deflector: DEFR56-15
- Distance Between Nibbs: 7.63 in.
- Hub Diameter: 3.25 in.
- Joint Angle: 32 degrees
- Kit Mtg. Holes: TH
- Series: 18N
- Spline Diameter: 2.390 in.
- Spline Length: 2.32 in.
- Use Kit: KT17SB
- Use U-Joint Kit: R676X
Includes
Meritor Genuine END YOKE - 18TYS3827A5
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
2 18TYS38 27A5, 65451111X, A23260D1824
Specifications
| Series | 2292 |
| Joint Angle | 8251 |
| Depth | 0.14 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.14 in. |
| Center To End | 5.16 in. |
| Number Of Splines / Teeth | 46 |
| MPN | 18TYS3827A5 |
| UPC | 884879661605 |
| Width | 9.35 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.15 in. |
| Benefits | END YOKE |
