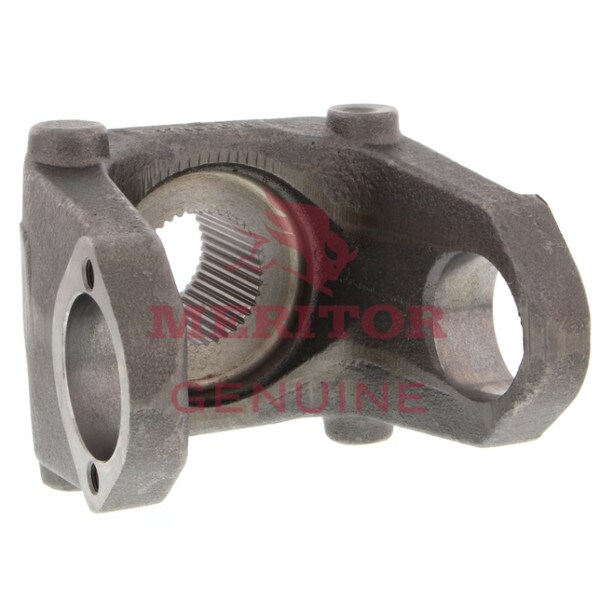

Meritor Genuine END YOKE - 17NYS3299
Details
Product Description
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 17NYS3299 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 6.25 in.
- Counter Bore Depth: 0.09 in.
- Hub Diameter: 3.00 in.
- Joint Angle: 45 degrees
- Series: 17N
- Spline Diameter: 2.024 in.
- Spline Length: 2.31 in.
- Use U-Joint Kit: M280X
- Yoke Dim. Across Ears: 6.09 in.
Includes
Meritor Genuine END YOKE - 17NYS3299
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 17NYS3299 Cross References
17N-4-4981X, 17N-4-6371, 17N44981X, 17N46371, 17NYS32, 17NYS32-99, 17NYS3256, 17NYS3256A1, 17NYS3295, 17NYS3299, 17NYS3299-RI, 17NYS3299RI, 217NYS32 99, 3260P120, 3260R1630, 3260W1817, 6-4-4971, 6-4-4981X, 6-4-6371, 644971, 644981X, 646371, 8235-17NYS3299, 823517NYS3299, 85102492, A-3280-D-5646, A3280D5646, ATI17NYS3299, N6-4-6371, N646371, TDA17NYS3299
Specifications
| Series | 2291 |
| Joint Angle | 8264 |
| Depth | 0.09 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.09 in. |
| Center To End | 6.25 in. |
| Number Of Splines / Teeth | 39 |
| MPN | 17NYS3299 |
| UPC | 680502029404 |
| Width | 7.5 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | END YOKE |
