Meritor Genuine END YOKE ES - 17N471411
Details
Product Description

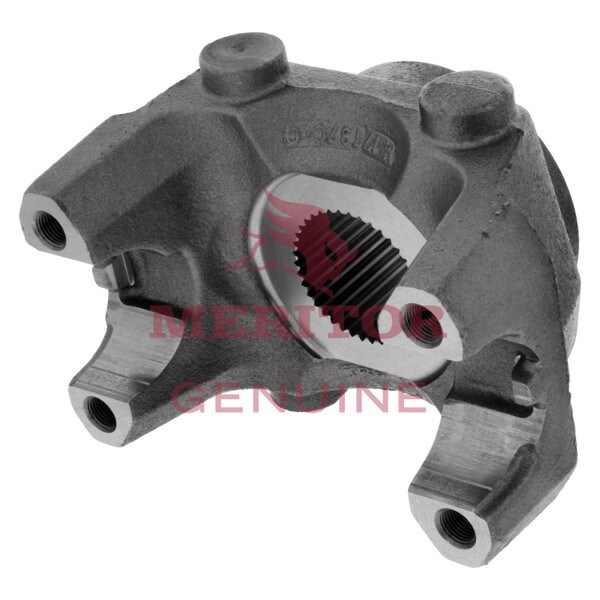

END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE ES - 17N471411 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 5.00 in.
- Comments: Coupling Shaft Yoke
- Counter Bore Depth: 0.05 in.
- Distance Between Nibbs: 6.19 in.
- Hub Diameter: 2.81 in.
- Joint Angle: 26 degrees
- Kit Mtg. Holes: TH
- Series: 17N
- Spline Diameter: 1.998 in.
- Spline Length: 3.00 in.
- Use Kit: KT17SB
- Use U-Joint Kit: M675X
Includes
Meritor Genuine END YOKE ES - 17N471411
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 17N471411 Cross References
17N-4-7141-1, 17N471411, 17TYS3271, 17TYSC3271, 217N 4 7141 1, 6-4-7141-1, 6-4-7141-1R, 6.4.7141.1, 6471411, 6471411R, 8235-17N471411, 823517N471411, 960078, ATI17N471411, N6-4-7141-1, N6471411, S-F339, SF339, TDA17N471411
Specifications
| Series | 2291 |
| Joint Angle | 8258 |
| Depth | 0.05 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.05 in. |
| Center To End | 5.00 in. |
| Number Of Splines / Teeth | 38 |
| MPN | 17N471411 |
| UPC | 737238648758 |
| Width | 7.5 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | END YOKE ES |
