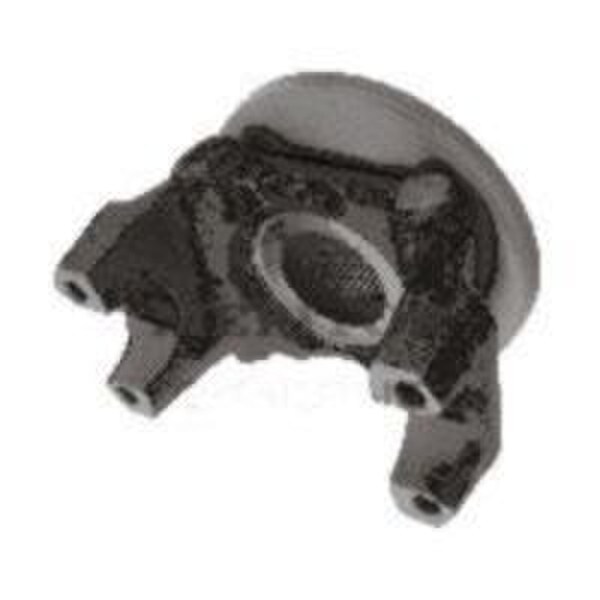

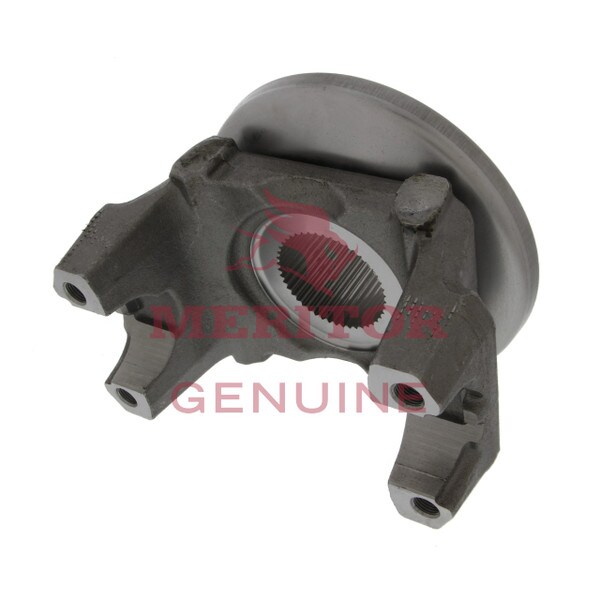

Meritor Genuine 46 Spline 176N End Yoke - 176TYS38-27A5 - 176TYS3827A5

Product Description

Meritor Genuine offers genuine production parts for original performance with the same quality as parts used on new OEM equipment and on trucks rolling down the assembly lines. Meritor Genuine makes it a point to continually update their parts with the latest design enhancements and is the best choice for new vehicles, vehicles still under warranty and for customers who want to run with the best. We make it easy to spec your product by giving you the most detailed information available - Series: 176N, Spline Diameter: 2.39 in., Splines: 46, Hub diameter: 3.25 in., Spline length: 2.32 in., Center to end: 5.06 in., Joint angle: 33 degrees, Bearing cap diameter: 1.94 in., Counter bore depth: 0.14 in., Use u-joint kit: R677X, Distance between nibbs: 7.09 in., Deflector: DEFR56-15, Kit mounting holes: Threaded.

Meritor Genuine warranties its parts for 1 year from the point of sale, though warranties for certain categories of parts may vary.

An American company based in Troy, Michigan, Meritor is a leading global supplier and pioneer of drivetrain, mobility, braking and aftermarket solutions for commercial vehicle and industrial markets. With years of experience engineering leading-edge products that offer superior performance, efficiency and reliability, you run with the best when you run with Meritor.

Features

• Series: 176N
• Spline Diameter: 2.39 in.
• Splines: 46
• Hub diameter: 3.25 in.
• Spline length: 2.32 in.
• Center to end: 5.06 in.
• Joint angle: 33 degrees
• Bearing cap diameter: 1.94 in.
• Counter bore depth: 0.14 in.
• Use u-joint kit: R677X
• Distance between nibbs: 7.09 in.
• Deflector: DEFR56-15
• Kit mounting holes: Threaded

Includes

One (1) end yoke and one (1) deflector

Warranty

1 Year

Cross Reference

176TYS3827A5, 2 176TYS38-27A5, 63418711X, A23260Z1820
