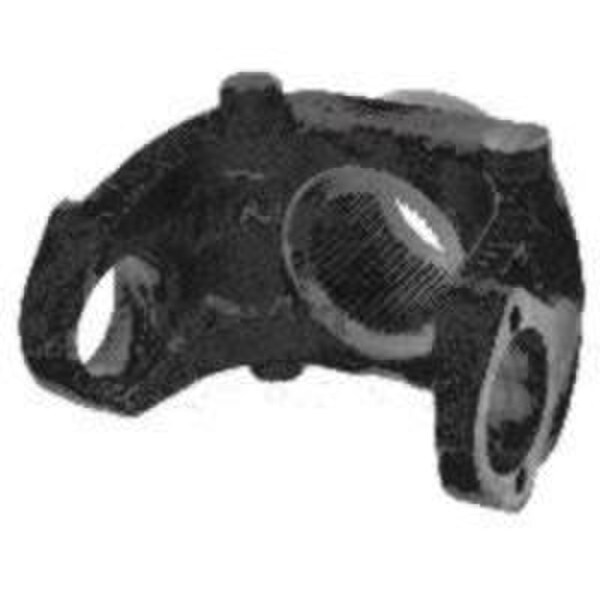

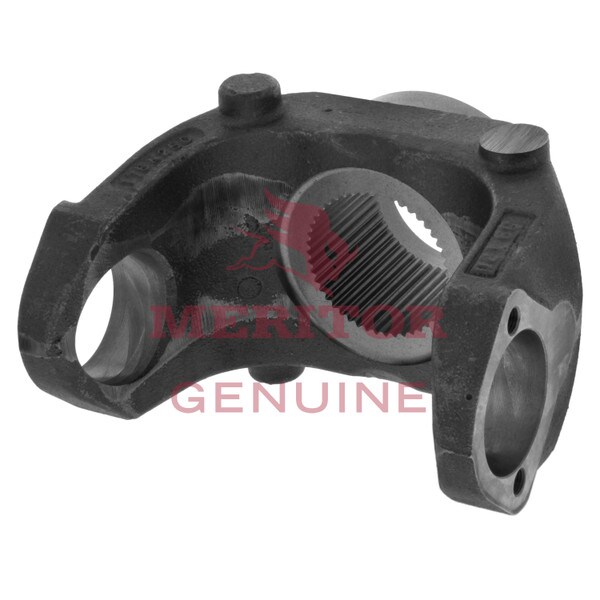

Meritor Genuine END YOKE - 176N4821
Details
Product Description
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 176N4821 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 5.50 in.
- Counter Bore Depth: 0.50 in.
- Hub Diameter: 2.88 in.
- Joint Angle: 34 degrees
- Series: 176N
- Spline Diameter: 2.390 in.
- Spline Length: 2.75 in.
- Use U-Joint Kit: M407X
- Yoke Dim. Across Ears: 7.00 in.
Includes
Meritor Genuine END YOKE - 176N4821
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 176N4821 Cross References
176N4, 176N4821, 2176N 4 821, 6.3-4-821, 634821, 8235-176N4821, 8235176N4821, ATI176N4821, TDA176N4821
Specifications
| Series | 2290 |
| Joint Angle | 8257 |
| Depth | 0.50 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.50 in. |
| Center To End | 5.50 in. |
| Number Of Splines / Teeth | 46 |
| MPN | 176N4821 |
| UPC | 737238889106 |
| Width | 7.5 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | END YOKE |
