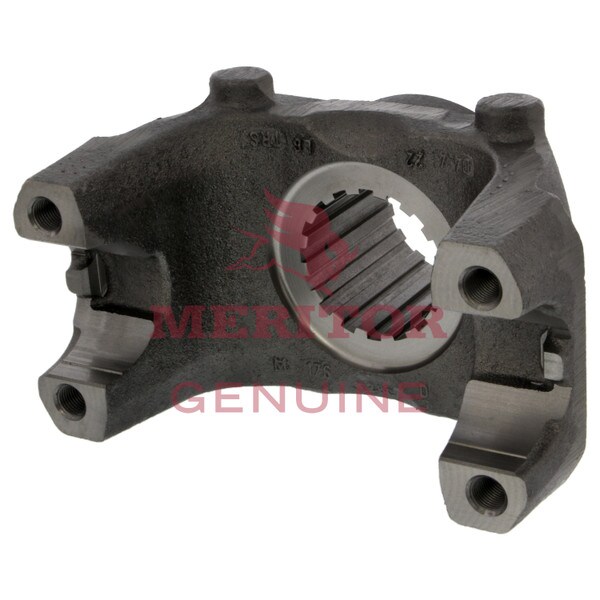

Meritor Genuine END YOKE ES - 176N45411X
Details
Product Description
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE ES - 176N45411X is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 5.19 in.
- Comments: Dana Spline Not Involuted
- Counter Bore Depth: 0.09 in.
- Deflector: DEFR56-2
- Distance Between Nibbs: 7.09 in.
- Hub Diameter: 3.00 in.
- Joint Angle: 33 degrees
- Kit Mtg. Holes: TH
- Series: 176N
- Spline Diameter: 2.024 in.
- Spline Length: 2.31 in.
- Use Kit: KT17SB
- Use U-Joint Kit: R677X
Includes
Meritor Genuine END YOKE ES - 176N45411X
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 176N45411X Cross References
176N-4-541-1X, 176N45411X, 2176N 4 541 1X, 6.3-4-541-1X, DS6345411X, N6.3-4-541-1 X, S-A126
Specifications
| Series | 2290 |
| Joint Angle | 8260 |
| Depth | 0.09 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.09 in. |
| Center To End | 5.19 in. |
| Number Of Splines / Teeth | 39 |
| MPN | 176N45411X |
| UPC | 737238662181 |
| Width | 7.4 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | END YOKE ES |
