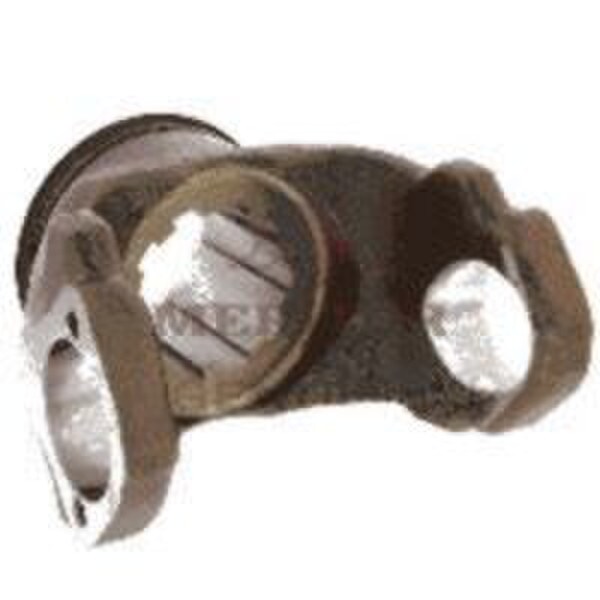

Meritor Genuine END YOKE - 176N41041X
Details
Product Description
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 176N41041X is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 5.06 in.
- Counter Bore Depth: 0.14 in.
- Deflector: DEFR56-7
- Hub Diameter: 3.25 in.
- Joint Angle: 34 degrees
- Series: 176N
- Spline Diameter: 2.390 in.
- Spline Length: 2.32 in.
- Use U-Joint Kit: M407X
- Yoke Dim. Across Ears: 7.00 in.
Includes
Meritor Genuine END YOKE - 176N41041X
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 176N41041X Cross References
2 176N 4 1041X, 6.3-4-1041X, 6341041X, A3260A1821, N6.3-4-1 041 X
Specifications
| Series | 2290 |
| Joint Angle | 8257 |
| Depth | 0.14 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.14 in. |
| Center To End | 5.06 in. |
| Number Of Splines / Teeth | 46 |
| MPN | 176N41041X |
| UPC | 884879616032 |
| Width | 7.4 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | END YOKE |
