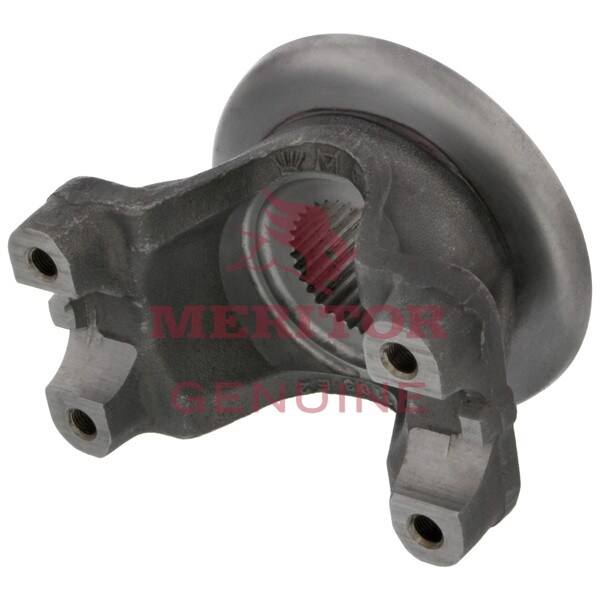

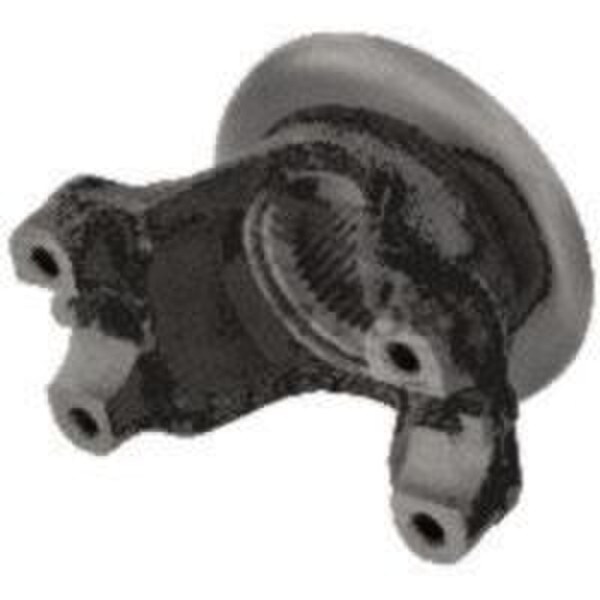

Meritor Genuine END YOKE ES - 155TYS2849A
Details
Product Description
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE ES - 155TYS2849A is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.38 in.
- Center To End: 4.37 in.
- Counter Bore Depth: 0.14 in.
- Deflector: 2297-R-6934
- Distance Between Nibbs: 4.97 in.
- Hub Diameter: 2.50 in.
- Joint Angle: 26 degrees
- Kit Mtg. Holes: TH
- Series: 155N
- Spline Diameter: 1.790 in.
- Spline Length: 1.97 in.
- Use Kit: KT124
- Use U-Joint Kit: CP155N or CP155X
Includes
Meritor Genuine END YOKE ES - 155TYS2849A
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
2155TYS28 49A
Specifications
| Series | 2287 |
| Joint Angle | 8258 |
| Depth | 0.14 in. |
| Diameter | 1.38 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.14 in. |
| Center To End | 4.37 in. |
| Number Of Splines / Teeth | 34 |
| MPN | 155TYS2849A |
| UPC | 680502262382 |
| Width | 5.35 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 5.35 in. |
| Benefits | END YOKE ES |
