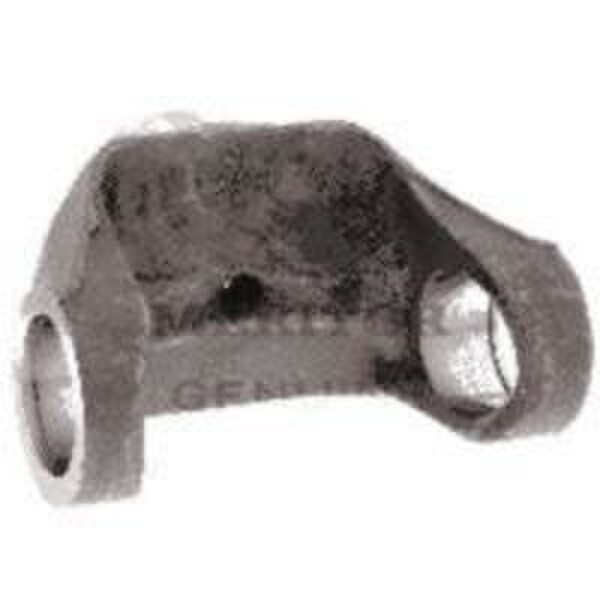

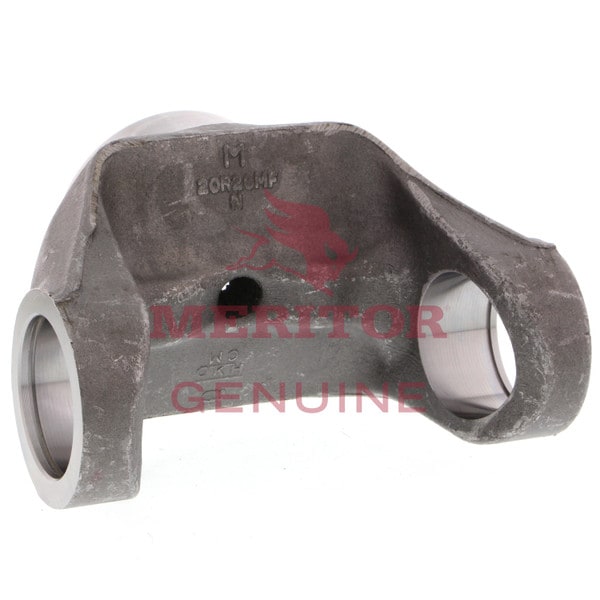

Meritor Genuine WELD YOKE - 20RY606
Details
DRIVELINE - WELD YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine WELD YOKE - 20RY606 is the ideal way to make sure you have the replacement part you've been looking for.
Cross References
20RY60, 20RY60-6, 20RY602, 20RY606, 20RY606-RI, 20RY606RI, 220RY60 6, 8235-20RY606, 823520RY606, 85107585, ATI20RY606, N20RY60-6, S-16194, S16194, TDA20RY602, TDA20RY606, TWD20RY606
Specifications
| Series | 2293 |
| Joint Angle | 8250 |
| Diameter | 2.06 in. |
| Brand | Meritor Genuine |
| Center To End | 4.88 in. |
| MPN | 20RY606 |
| UPC | 737238797487 |
| Width | 7.5 in. |
| VMRS | 024-002-057 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | WELD YOKE |
Features
- Bearing Cap Diameter: 2.06 in.
- Center To End: 4.88 in.
- Center To Weld Point: 3.70 in.
- Insert Diameter: 3.74 in.
- Joint Angle: 30 degrees
- Series: RPL20
- Use U-Joint Kit: CP20RPLS1
- Use W/ Tubing OD And Wall: 4.00 in. x .134 in. (10 GA), 4.095 in. x .180 in. (7 GA)
- Yoke Dimension Across Ears: 7.00 in.
Includes
Meritor Genuine WELD YOKE - 20RY606
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Returns, Warranty & Cores
For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.
