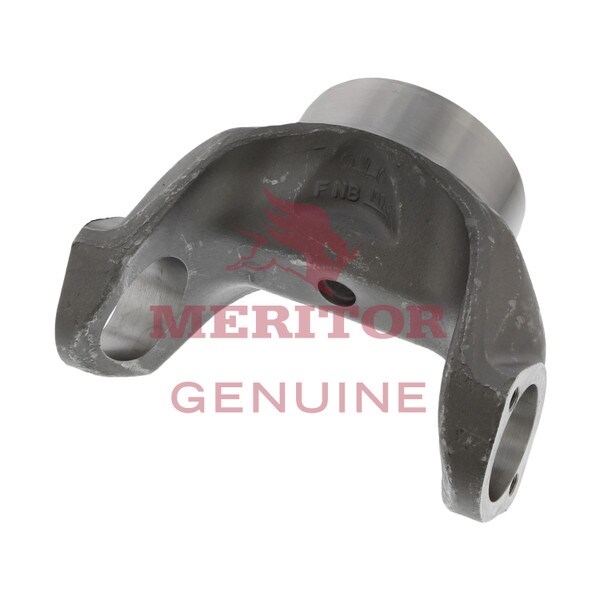

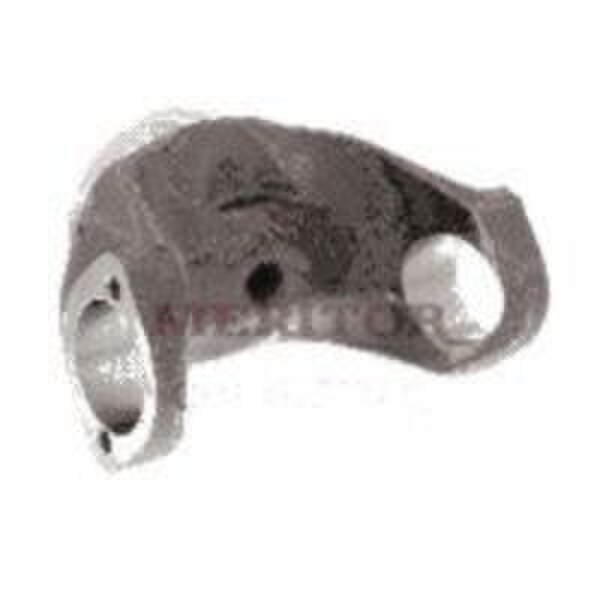

Meritor Genuine WELD YOKE - 18N28117
Details
Product Description
DRIVELINE - WELD YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine WELD YOKE - 18N28117 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 4.63 in.
- Center To Weld Point: 3.38 in.
- Insert Diameter: 4.24 in.
- Joint Angle: 30 degrees
- Series: 18N
- Use U-Joint Kit: M281X or M676X
- Use W/ Tubing OD And Wall: 4.50 in. x .134 in. (10 GA)
- Yoke Dimension Across Ears: 7.55 in.
Includes
Meritor Genuine WELD YOKE - 18N28117
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 18N28117 Cross References
18N-28-117, 18N28117, 218N 28 117, 6.5-28-117, 6.528117, 6528117, N6.528117, N6528117, R6.5-28-117, R6528117, S-7455
Specifications
| Series | 2292 |
| Joint Angle | 8250 |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Center To End | 4.63 in. |
| MPN | 18N28117 |
| UPC | 737238311232 |
| Width | 7.5 in. |
| VMRS | 024-002-057 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | WELD YOKE |
