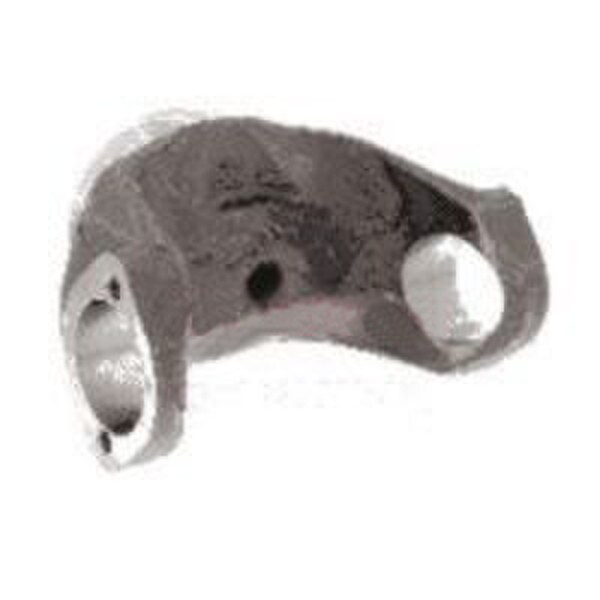

Meritor Genuine WELD YOKE - 176N2817

Product Description

DRIVELINE - WELD YOKE

Warranty information may be based on the product and application. Please contact us for additional information.

For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine WELD YOKE - 176N2817 is the ideal way to make sure you have the replacement part you've been looking for.

Features

• Bearing Cap Diameter: 1.94 in.
• Center To End: 4.12 in.
• Center To Weld Point: 3.03 in.
• Insert Diameter: 3.75 in.
• Joint Angle: 32 degrees
• Series: 176N
• Use U-Joint Kit: M407X or M677X
• Use W/ Tubing OD And Wall: 4.095 in. x .180 in. (7GA)
• Yoke Dimension Across Ears: 7.00 in.

Includes

Meritor Genuine WELD YOKE - 176N2817

Warranty

Warranty information may be based on the product and application. Please contact us for additional information.

Cross Reference

176N-28-17, 176N28-17, 176N2817, 2039550, 2104-632817, 2104632817, 2176N 28 17, 38MU3372, 578389C1, 6-3-28-17, 6.3-28-17, 6.3-28-17R, 6.3.28.17, 6.32817, 632817, 632817-SP, 632817R, 632817S, 632817SP, 8235-176N2817, 8235176N2817, D632817, E632817, JTY-8241, JTY8241, N6.3-28-17, N632817, S-8448, S8448, SP632817, TWD632817, ZBP632817
