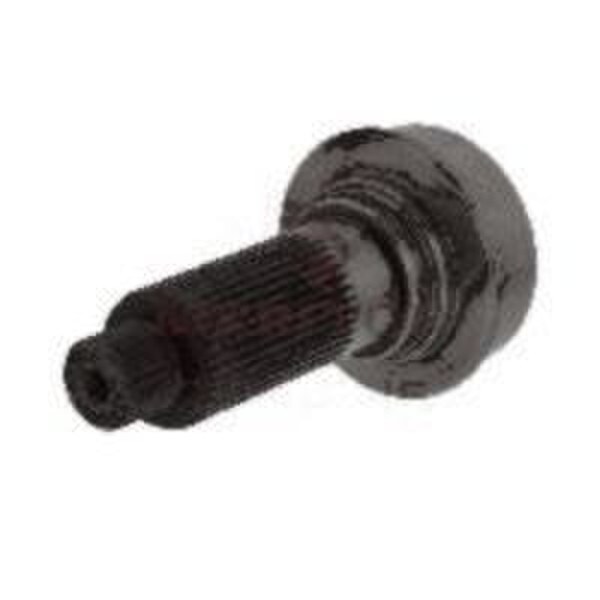

Meritor Genuine STUB SHAFT - 17N53411
Details
Product Description
DRIVELINE - STUB SHAFT
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine STUB SHAFT - 17N53411 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Shoulder Diameter: 1.968 in.
- Deflector Diameter: 2.81 in.
- Effective Length: 5.15 in.
- End Of Spline To Bearing Shoulder: 4.06 in.
- Insert Diameter: 3.74 in.
- Related Nut: 1227Z936
- Related Washer: WAR21-1
- Shoulder Diameter: 2.44 in.
- Shoulder Length: 0.81 in.
- Spline Diameter: 1.950 in.
- Spline Length: 2.84 in.
- Style: 01
- Thread Diameter: 1.25 in.
- Threads per Inch: 18
- Use W/ Tubing OD And Wall: 4.00 in. x .134 in. (10 GA)
Includes
Meritor Genuine STUB SHAFT - 17N53411
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 17N53411 Cross References
15633774, 17N53-11, 17N5311, 2104-653411, 2104653411, 217N 53 411, 30014-3201, 300143201, 6-53-411, 6-53-411R, 653411, 653411-SP, 653411R, 653411S, 653411SP, 960164, D653411, DS653411, E653411, S-11476, S11476, SP653411, TWD653411
Specifications
| Style | 2396 |
| Diameter | 1.25 in. |
| Brand | Meritor Genuine |
| Number Of Splines / Teeth | 38 |
| MPN | 17N53411 |
| UPC | 680502193808 |
| Width | 7.5 in. |
| VMRS | 024-002-060 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | STUB SHAFT |
