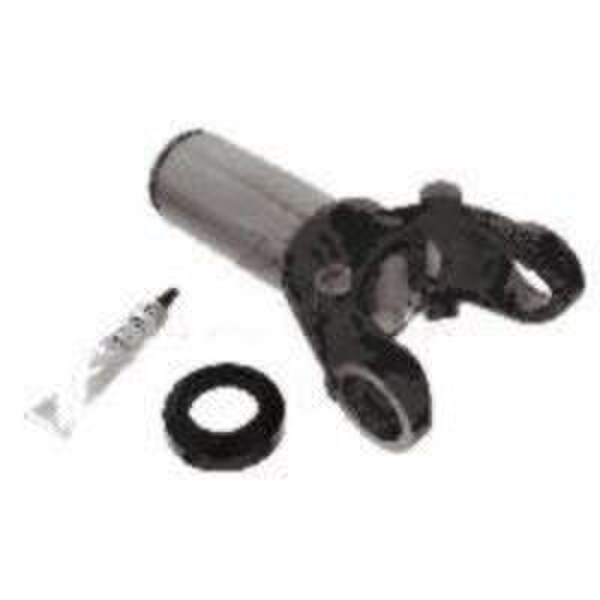

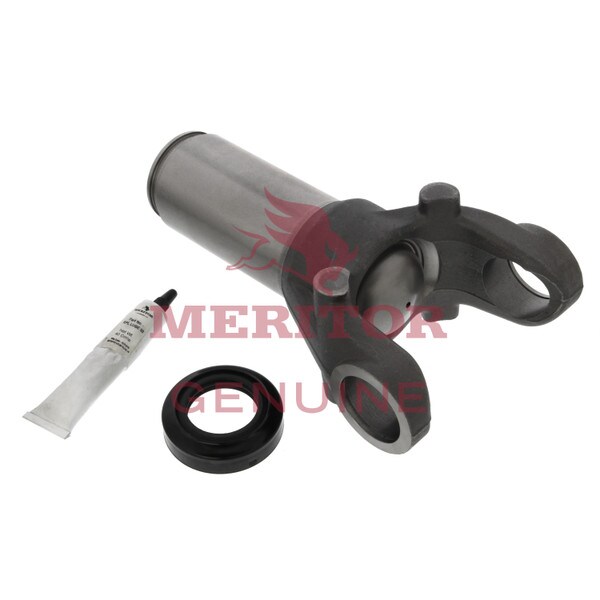

Meritor Genuine RPL SLIP YOKE - 20RLS402A1S
Details
Product Description
DRIVELINE - SLIP YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine RPL SLIP YOKE - 20RLS402A1S is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Aftermarket Extended Warranty - General: 2 Years / Unlimited Miles
- Bearing Cap Diameter: 2.06 in.
- Center To End: 11.45 in.
- Dust Cap Style: 3 Snap-On
- Joint Angle: 32 degrees
- Length of Hole: 8.53 in.
- Related Dust Cap Group: KIT 20RPL SEAL
- Series: RPL20
- Spline Diameter: 2.500 in.
- Use U-Joint Kit: CP20RPLS
- Yoke Dimension Across Ears: 7.00 in.
Includes
Meritor Genuine RPL SLIP YOKE - 20RLS402A1S
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 20RLS402A1S Cross References
20RLS40, 20RLS40-2A1S, 20RLS401A, 20RLS401A1, 20RLS401A1S, 20RLS401A2, 20RLS402A1, 20RLS402A1S, 20RLS402A1S-RI, 20RLS402A1SRI, 20RLS402A2, 220RLS40 2A1S, 3901755, 8235-20RLS402A1S, 823520RLS402A1S, ATI20RLS402A1S, DL20RLS401A1S, DL20RLS401A2, DL20RLS402A1S, DL20RLS402A2, N20RLS40-2A1S, RW20RLS401A2, RW20RLS402A1, RW20RLS402A2, TDA20RLS402A1S, TWD20RLS402A1S
Specifications
| Series | 2293 |
| Joint Angle | 8251 |
| Diameter | 2.06 in. |
| Brand | Meritor Genuine |
| Center To End | 11.45 in. |
| Number Of Splines / Teeth | 16 |
| MPN | 20RLS402A1S |
| UPC | 680502102107 |
| Width | 7.45 in. |
| VMRS | 024-002-038 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | RPL SLIP YOKE |
