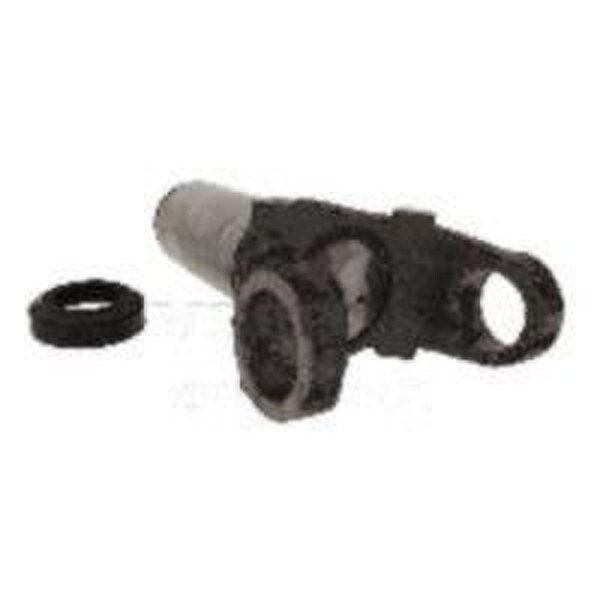

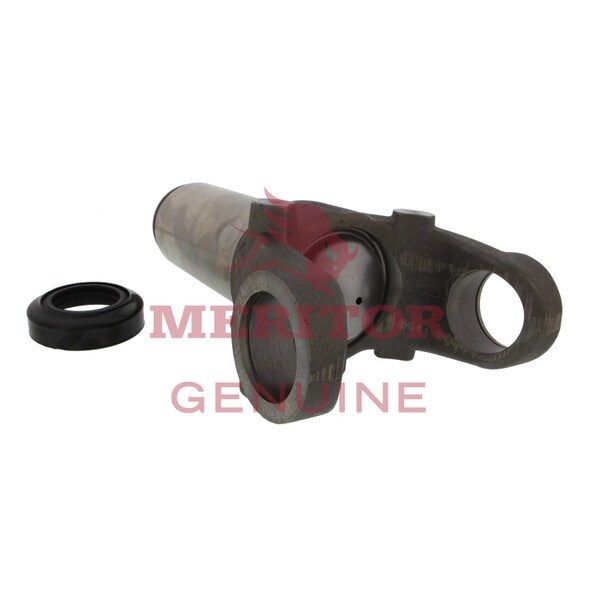

Meritor Genuine SLIP YOKE - 20RLS4011A1S
Details
DRIVELINE - SLIP YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine SLIP YOKE - 20RLS4011A1S is the ideal way to make sure you have the replacement part you've been looking for.
Cross References
11A1S, 20RLS40, 20RLS4011A1, 20RLS4011A1S, 220RLS40 11A1S, 8235-20RLS4011A1S, 823520RLS4011A1S, S-18701, S18701, TDA20RLS4011A1S
Specifications
| Series | 2293 |
| Joint Angle | 8251 |
| Diameter | 2.06 in. |
| Brand | Meritor Genuine |
| Center To End | 12.15 in. |
| Number Of Splines / Teeth | 16 |
| MPN | 20RLS4011A1S |
| UPC | 680502102114 |
| Width | 8.25 in. |
| VMRS | 024-002-038 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 8.1 in. |
| Benefits | SLIP YOKE |
Features
- Bearing Cap Diameter: 2.06 in.
- Center To End: 12.15 in.
- Dust Cap Style: 3 Snap-On
- Joint Angle: 32 degrees
- Length of Hole: 9.23 in.
- Related Dust Cap Group: KIT 20RPL SEAL
- Series: RPL20
- Spline Diameter: 2.500 in.
- Use U-Joint Kit: CP20RPLS
- Yoke Dimension Across Ears: 7.00 in.
Includes
Meritor Genuine SLIP YOKE - 20RLS4011A1S
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
