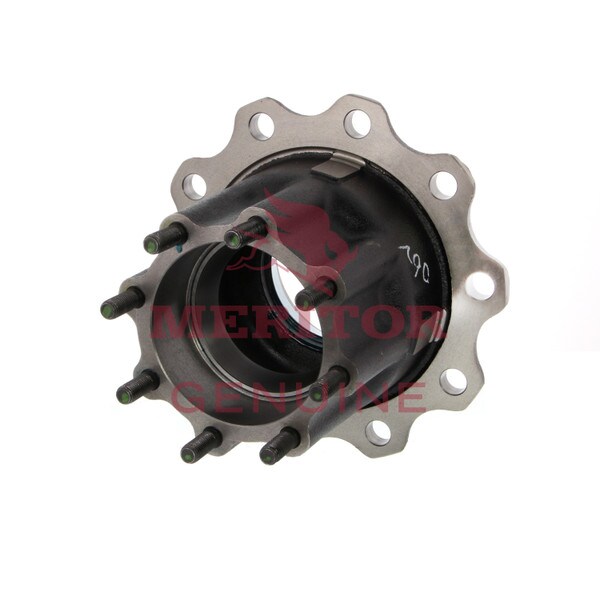

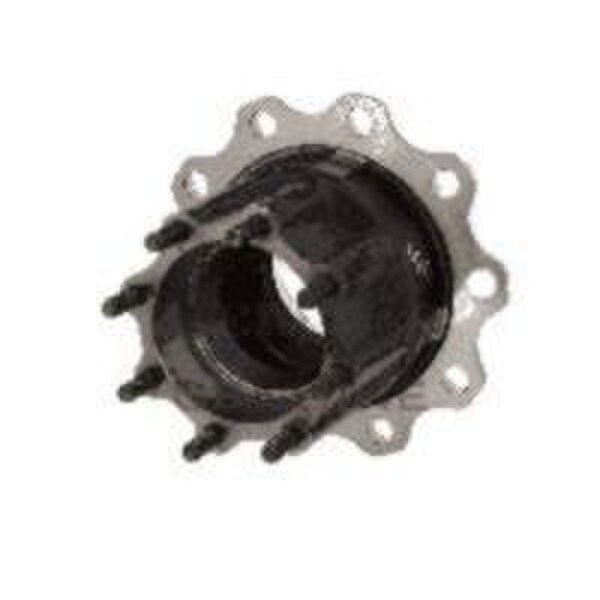

Meritor Genuine AY-HUB - 0416062004
Details
AIR BRAKE - HUB ASSEMBLY
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine AY-HUB - 0416062004 is the ideal way to make sure you have the replacement part you've been looking for.
Specifications
| ESC | 0 |
| Brand | Meritor Genuine |
| MPN | 416062004 |
| Width | 15 |
| VMRS | 018-002-001 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 15.25 |
Features
- ABS Pilot Diameter: 6.882/6.879 in.
- ABS Ring Number: 3237H1256
- Axle Application: Drive
- Axle Series: R
- Base Part Number: 16062
- Brake Type: Drum
- Drive Flange Stud: 08-205740
- Drive Stud Pattern: 08
- Drive Stud Thread: 5/8-11 UNC-3B
- DriveStud Bolt Circle Dia: 7.00 in.
- Drum Bolt Circle Diameter: 11.25 in.
- Drum Bolt Pattern: 10
- Drum Bolt Size: .904/.906 in.
- Drum Pilot Diameter: 8.778/8.775 in.
- Drum Position: Outboard
- Flange Outer Diameter: 13.00 in.
- Fully Dressed: No
- GAWR (lb): 27000
- Hub Style: Conventional
- Hub Type: Hub only
- IBS to OBS: 4.327/4.287 in.
- IBS to Outer Surface: 7.77/7.73 in.
- Inner Bearing Surface (IBS) to Mounting Face: 1.19 in.
- Inner Cone: 594A
- Inner Cup: 592A
- Oil Seal: A1205Q2487
- Outer Cone: 580
- Outer Cup: 572
- Tone Ring: Y
- Wheel Pilot Diameter: 8.653/8.646 in.
- Wheel Stud Bolt Circle Diameter: 11.25 in.
- Wheel Stud Hole: .904/.906 in.
- Wheel Stud Pattern: 10
Warranty
1 Year
