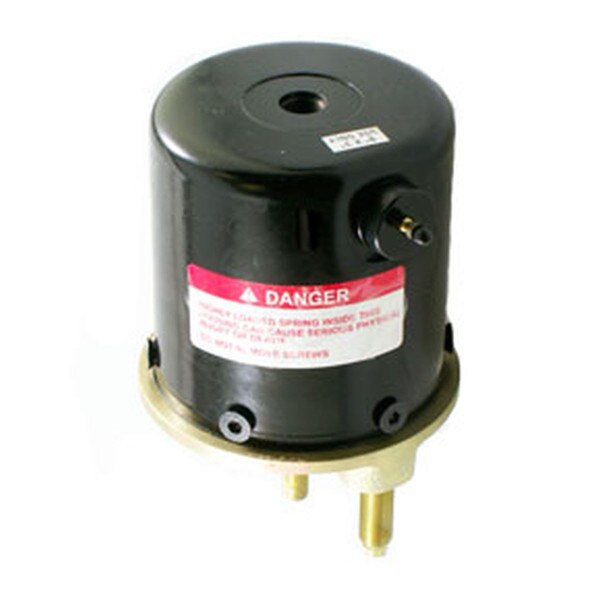

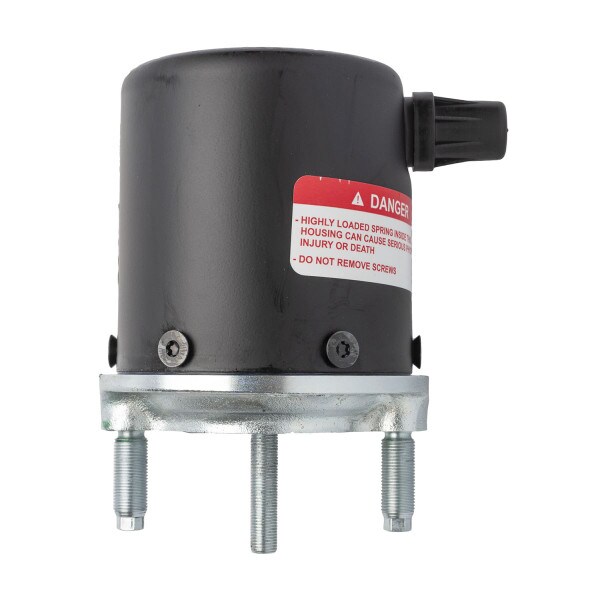

Haldex MAXIBRAKE HR Hydraulic Spring Brake - MA15511

Haldex MA15511 - Maxibrake Actuator HR Series Hydraulic Spring Brake

Product Description

Spring brakes and their subsequent parts are generally reserved for the rear axle of the vehicle. Each spring brake is built with two different chambers with two different purposes. The service chamber, like any other brake chamber, is used to push the compressed air through the brake system to apply enough force to stop the brakes. However, spring brakes also contain a piggyback chamber that applies the emergency/parking brakes. Spring brakes are vital for emergency situations, so it's important that you find reliable parts with plenty of power.

This Haldex MAXIBRAKE HR-Series Spring Brake Actuator built with all steel housing that brings durability and added corrosion resistance. It's built with a steel piston and nylon bearings that diffuses lateral motion for accurate stability. This spring brake will stop your vehicle in emergencies and won't release until the air supply is at a safe level. This specific actuator has a maximum hydraulic pressure of 125 PSI.

Note: This hydraulic unit is compatible with ATF - do not use brake fluid.

Haldex is a major provider of innovative solutions for brakes to heavy duty vehicles across the globe. Haldex aims to bring the safest and most dynamic brake parts to your truck, creating a world of safer vehicles for generations to come. For unique products to operational excellence, choose Haldex to drive your future.

Features

• MAXIBRAKE HR-Series Spring Brake Actuator
• Built with all steel housing that brings durability and added corrosion resistance
• Steel piston and nylon bearings diffuses lateral motion for accurate stability
• Vehicle will stop in emergencies and won't release until air supply is at a safe level
• Maximum Hydraulic Pressure of 125 PSI

Includes

One (1) Hydraulic Spring Brake

Cross Reference

3512528, 5396-MA15511, 5396MA15511, 767653185095, HDXMA15511, KSHR2PT06H00019, KSHR2PT06H00026, MA15511M1D, MBIMA15511, MIDMA15511, N34000, N34001, N34001B, N34001M1D, N36001, ZZMA15511, ZZN34001
