Horton Freightliner Cummins (07-12) Fan Clutch - 992092

Product Description

Heavy-duty vehicle engines can get toasty after spending countless hours on the road; but with the help from fan clutches, the engine will stay at a cooler temperature that is optimal for driving long distances.

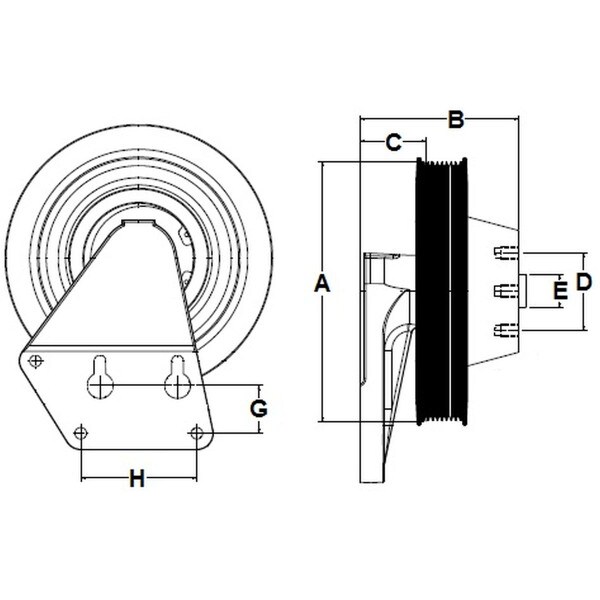

This fan clutch is designed for Freightliner trucks (2007-2012) with Cummins engines. Its bolt circle size measures at 2.36 inches and it offers a fan pilot diameter of 1 inches. Its back pulley diameter measures 7.92 inches while its front pulley diameter measures 0 inches. Its vertical mounting distance measures 1.46 inches and its horizontal mounting distance measures 3.54 inches. This external engine component contains a pulley belt configuration of 8K and it has a belt groove location of 2.01. Finally, it has an overall length measuring 4.84 inches.

This product's warranty ranges from 12-36 months depending on vocation and product type.

Horton is an industry leader in the field of clutches and engine system components. Since 1951, Horton has received global recognition for their reliable engine cooling fans that continue to help on-highway and off-highway vehicles safely operate on the road.

Features

• Designed for Freightliner trucks (2007-2012) with Cummins engines
• Bolt circle size measures at 2.36 inches
• Fan pilot diameter of 1 inches
• Back pulley diameter measures 7.92 inches
• Front pulley diameter measures 0 inches
• Vertical mounting distance measures 1.46 inches
• Horizontal mounting distance measures 3.54 inches
• Pulley belt configuration of 8K
• Belt groove location of 2.01
• Overall length measuring 4.84 inches

Includes

One fan clutch

Warranty

12-36 months depending on vocation and product type.

Cross Reference

982092

Specifications
