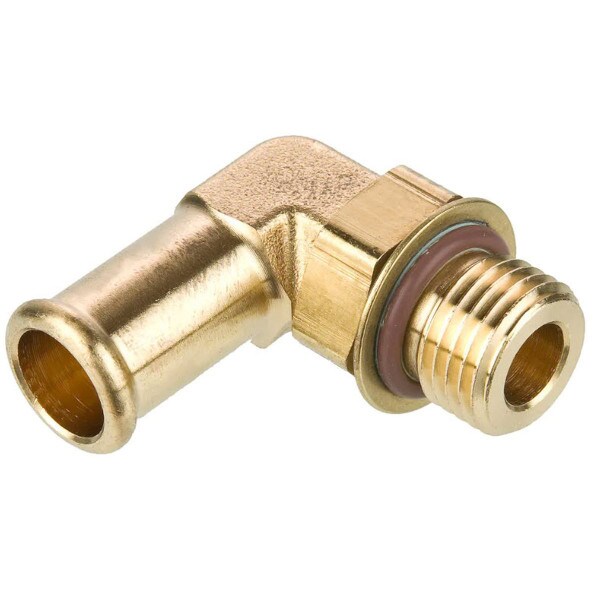

PARKER HANNIFIN BREADMAN HB ELBOW TO STRAIGHT - 1695HB-6-4
Details
Product Description
The PARKER HANNIFIN BREADMAN HB ELBOW TO STRAIGHT - 1695HB-6-4 was designed to be the ideal replacement part for your semi-truck.
Made using long lasting and reliable materials, the PARKER HANNIFIN BREADMAN HB ELBOW TO STRAIGHT - 1695HB-6-4 will provide you with years of impeccable use. This brass hose fitting is s 90-degree beaded barb elbow, and has a brab, clamp, and thread connection type.
Warranty information may be based on the product and application. Please contact us for additional information.
For an excellent way to make sure your commercial semi-truck is running at peak capacity, choose the PARKER HANNIFIN BREADMAN HB ELBOW TO STRAIGHT - 1695HB-6-4.
Features
- Connection 1 Style: Beaded Barb
- Connection 2 Thread Size (mm): na
- Style: Barb to Straight Thread
- Connection 2 Style: Straight Thread
- Shape: 90° Beaded Barb Elbow
- Connection 2 Thread Size (inch): 7/16-20
- Connection Type: Barb, Clamp and Thread
- Shape: Various
- Minimum Operating Temperature: -40 °C, -40 °F
- Maximum Operating Temperature: 160 °F, 71 °C
- Maximum Operating Pressure: 10 bar, 150 psi
- Tube Material: Rubber Hose, GPH Hose
- Media: Water, Coolant, Compressed Air
- Application: Air powered Tools, Coolant Lines, Fuel Lines
- Specifications Met: Clamp or Crimped Ferrule must be used with fittings
- Materials of Construction: Brass
- O-Ring Material: Fluorocarbon
Includes
One (1) PARKER HANNIFIN BREADMAN HB ELBOW TO STRAIGHT - 1695HB-6-4
Warranty
Warranty information may be based on the product and application. Please contact us for additional information
Specifications
| Brand | parker hannifin |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | Uses high-quality construction and materials. |
