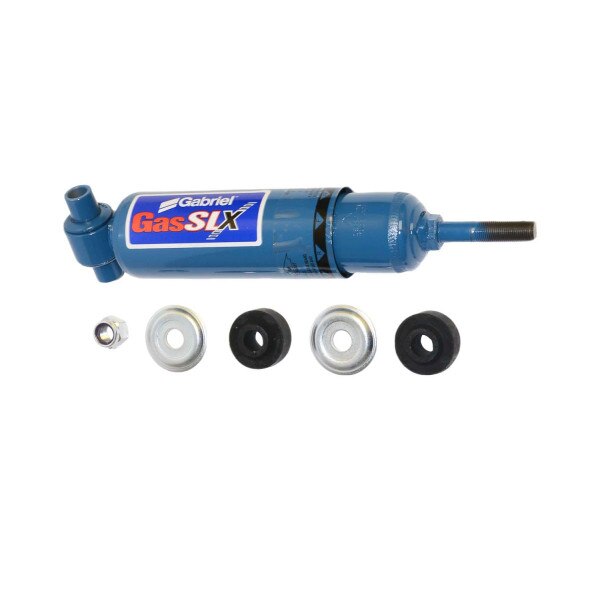

Gabriel GasSLX Shock Absorber - 89456
Details
Product Description
Shock absorbers are a vital piece of any truck's suspension. They quite literally keep you grounded as a driver. Bad shocks not only lead to a bumpy ride, but can increase a truck's stopping distance as well as it's turning accuracy. Don't settle for low quality shocks and get a fresh set that fits your trucks specifications.
This Gabriel GasSLX Series Heavy Duty Shock Absorber is built with three adjustable settings to deliver customized comfort for your ride control preferences. It also contains a chromed piston rod that protects against corrosion. It delivers maximum control, comfort and durability with it's 10-stage valving. The GasSLX series has forged solid steel eye rings and 360 degree arc-welded end monts to reduce end mount failure. It also has the unique Gas Cell design that reduces fade by separating the gas from the fluid to eliminate aeration. For greater fluid retention and increased perfomance in higher temperatures these parts are constructed with Multi-lip Viton Seals. This specific shock absorber is 11.29 in fully collapsed and 17.02 in. fully extended. The stroke size on this shock is 5.73 in. and the bore size is 1.625 in. For Kenworth and Peterbilt vehicle and axle applications.
This particular product comes with a 2 year, 200,000 mile warranty.
Gabriel invented the original auotomotive shock absorber in 1907 and haven't taken their foot off the gas since. Covering more than 96% of North American vehicle, Gabriel is where you go when you want to purchase innovative shock solutions from a brand you trust.
Features
- GasSLX Series Heavy-Duty Cab Shock Absorber
- 11.29 in to 17.02 in. Collapsed to Extended Length
- Three adjustable settings to deliver customized comfort for your ride control preferences
- Multi-lip Viton Seal alows for greater fluid retention and increased performance in higher temperatures
- Gas Cell design reduces fade for maximum comfort
- Chromed Piston Rod protects against corrosion that makes for longer product life
- Delivers maximum control, comfort and durability with it's 10-stage valving
- Larger bore makes for a more durable shock in harsher operating conditions
- 360 degree arc-welded end mounts reduce end mount failures
- 5.73 in. Stroke Size
- 1.625 in. Bore Size
- 2 Year, 200,000 Mile Warranty
Includes
Includes One (1) Shock Absorber and One (1) Mounting Assembly
Warranty
2 Year, 200,000 Mile Warranty
Cross Reference
03-08781, 10-12703-000, 10-13021-000, 10-13063-000, 10-13205-000, 10-13211-000, 10-13634-000, 10-13684-000, 10-13809-000, 1000-SA5724, 1000SA5724, 1012388000, 1012390000, 1012396000, 1012703000, 101302100, 1013021000, 101306300, 1013063000, 1013205000, 1013211000, 1013634000, 1013684000, 101380900, 1013809000, 1396513MTM, 14QK322M, 14QK422M, 15642863, 16-13957-000, 16-13957-003, 16-15817-000, 16-18455-000, 16-18708-000, 1613952000, 1613957000, 1613957003, 1615817, 1615817000, 1616591000, 1618103000, 1618455000, 1618708000, 200376, 200495, 20710, 22064805, 277A13, 308781, 311229, 315390, 315395, 315406, 315414, 315597, 315600, 315601, 315617, 315623, 316312, 316316, 316824, 32197, 341618, 341619, 341628, 345606, 34936, 3946239, 3949226, 410026, 410046, 441602, 45117, 4518080BA, 471700000000, 471700000000000, 471700000440, 471700000449, 471700000456, 471700000466, 471700000470, 471700002391, 471700002726, 471700002808, 471700002809, 471700002991, 471700003920, 471700131155, 471700131646, 472000000000, 47200000000000, 481700000000, 481700000000000, 481700006848, 508781, 510018, 53010, 53065, 555019, 573245, 573246, 57374425, 58913-008L, 58913-009, 58913-009L, 60665024, 61300224, 61300240, 61310434, 61310478, 64838001, 65139, 65139M, 65140, 65148, 65148M, 65468, 65468M, 65490, 65524, 65524M, 65524S, 65528, 659060, 65992-003, 66406, 66418, 66433, 66434, 665725, 665826, 665844, 665876, 671091, 671654, 671908, 671945, 671962, 671962-40Y, 67196240Y, 680339, 680611, 69685, 69725, 700121, 700423, 700423MT, 711011, 711017, 716005, 74081, 74425, 78015, 78034, 801551, 8220648050, 8220648060, 8220648070, 83136, 83176227, 83176235, 83176238, 85069, 85106580, 85328, 85705, 85724, 85918, 85920, 85936, 85958, 85959, 88-1419, 8805-1022, 88051022, 88123, 8901029, 8901033, 89443, 89447, 89449, 89455, A85069, A85724, A85918, A89443, A89449, A89455, AA486, AA503, ABPN32G900001, AMS 65140, AMS650139, AMS650468, AMS65140, AMS65490, AMS660189, AMS700116, AMS700121, AMS700423, APL-101738, APL-101739, APL-101742, APL-101744, AR1404, AR1425, ASH121, ASH24434, ASH362, ASHV1047, ASHV1050, AT507G, B711001, B716004, C71-1011, C71-1011PLUS, C71-1011SPL, C71-1014, C71-1017, C71-6005, C711011, C711011PLUS, C711011RT, C711011SPL, C711014, C711017, C711017PLUS, C716005, C716005PLUS, CAH028, CAT745, CAT751, D8HZ18124A, DPM65139, DPM65148, DPM65468, DPM66406, E6HZ18124A, EF65490, EOMN32197, F65139, F65148, F66406, FLF65139, FLF65148, FLS-85069, FLS-85724, FLS-85918, FLS-85936, GA85724, GAB/85069, GAB85069, GAB85724, GAB85918, GBL 85724, GBL85724, GSX-89443, GSX-89449, GSX-89455, GSX-89456, HS85724, L-12713, M65139, M65140, M65148, M65468, M65490, M65524, M65528, M66406, M74425, M85069, M85724, M85918, M85936, M89443, M89449, M89455, M89456, MAE 65140, MAE 65148, MAE 65468, MAE 65490, MAE/65490, MAE65140, MAE65148, MAE65468, MAE65490, MERM85724, MI65139, MISA32197, MISA65139, MISA65468, MN32197, MN65139, MNSA65139, MON 65140, MON65140, MR32197, MS20710, MS32197, MS34936, MS36033, MS85936, MS88123, PROSH85724, RC SA5724, RC SA5918, RCSA5724, RCSA5918, S-11800, S-20451, S11800, S20451, S22345, S23361, SA32197, SA5069, SA5724, SA5918, SA65139, SA65468, SA74081, SA74425, SDA471400003920, SDA471700000440, SDA471700002809, SDA471700002991, SDA471700003920, SF393, SMR560429, SMR560600, T141048, TDA 85724, TDA 85918, TDA85724, TDA85918, TDAM85724, WA01-85724, WA0185724, XC45-18080-BA, XC4518080BA, ZDRM85724
Specifications
Width | 6059 |
Stroke Inch | 7113 |
Height | 6058 |
Model | 7246 |
Length | 6063 |
Brand | Gabriel |
Stroke | 145.54 mm. |
MPN | 89456 |
Color | Blue |
Width | 3.38 in. |
VMRS | GBRLR |
UOM Quantity (Per Unit of Measure) | 1 |
Unit of Measure (case, ea, drum, etc.) | each |
Type / Style | Shock Absorber |
Height | 26.75 in. |
Global Trade Number | 43645924096 |
Benefits | This GasSLX series heavy duty shock absorber is built with three adjustable settings to deliver customized comfort for your ride control preferences. It also contains a chromed piston rod that protects against corrosion that makes for a long product life. It delivers maximum control, comfort and durability with it's 10-stage valving. The GasSLX series has a larger bore size for harsher operating conditions as well as forged solid steel eye rings and 360 degree arc-welded end monts to reduce end mount failure. It also has the unique Gas Cell design that reduces fade by separating the gas from the fluid to eliminate aeration. For greater fluid retention and increased perfomance in higher temperatures these parts are constructed with Multi-lip Viton Seals. This specific shock absorber is 11.29 in fully collapsed and 17.02 in. fully extended. The stroke size on this shock is 5.73 in. and the bore size is 1.625 in. |
