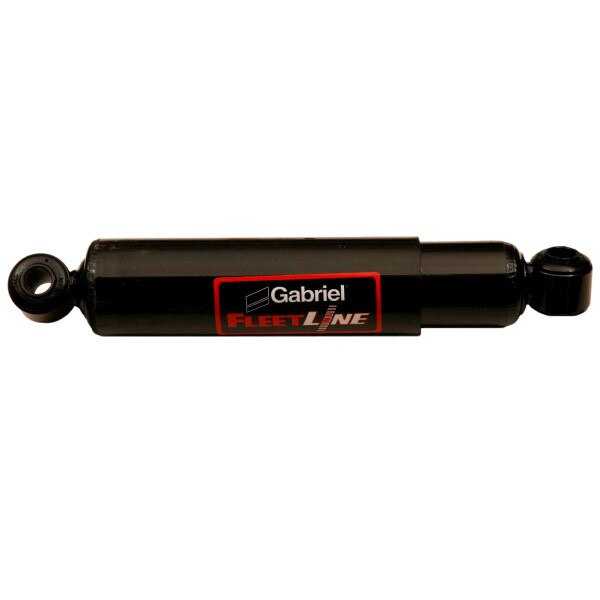

Gabriel FleetLine 85000 Series Shock Absorber - 85906
Details
Shock absorbers are a vital piece of any truck's suspension. They quite literally keep you grounded as a driver. Bad shocks not only lead to a bumpy ride, but can increase a truck's stopping distance as well as it's turning accuracy. Don't settle for low quality shocks and get a fresh set that fits your trucks specifications.
This Gabriel FleetLine 85000 Series Heavy Duty Shock Absorber is built with a best-in-class hydraulic stop which prevents the suspension from over-extending itself. It also contains a chromed piston rod that protects against corrosion. It delivers maximum control, comfort and durability with it's 10-stage valving. The 85000 series has forged solid steel eye rings and 360 degree arc-welded end mounts to reduce end mount failure. This specific shock absorber is 14 in. fully collapsed and 21.73 in. fully extended. The stroke size on this shock is 7.73 in. and the bore size is 1.625 in. For various axle and vehicle applications.
This particular product comes with a 1 year, 100,000 mile warranty.
Gabriel invented the original automotive shock absorber in 1907 and haven't taken their foot off the gas since. Covering more than 96% of North American vehicle, Gabriel is where you go when you want to purchase innovative shock solutions from a brand you trust.
Cross References
1083207, 110808, 1139059MTM, 13424ADV, 14414, 14QK-414M, 14QK414M, 1962430, 25633154, 311631, 315431, 315544, 341632, 34895, 3945808, 3HR916MTM, 503610C1, 508-28, 517-05916-14, 53066, 555026, 555027, 555028, 618080EA, 65106, 65418, 654890, 66886, 680234, 680280, 69515, 69711, 69741, 7HS534 MTM, 7HS534MTM, 8174749, 822345, 83124, 83207, 85014, 85102, 85345, 85906, 88-1642, 89407, 90044769, 90045000, 90045002, 90045099, A85906, AMS600103, AMS650418, AMS660103, AMS660194, AMS85895, CAT-895, CAT926, DPM65418, E83207, E85014, EMN65418, EOMN65418, EUEMN65418, EUSA65418, F65418, F6HT-18080-EA, F6HT18080EA, FLF65418, GSX-89407, KG6009A, M65418, M85906, MI65418, MISA65418, MN65418, MNEMN65418, MNSA65418, MO65418, MS65418, N65418, SA65418
Specifications
| Width | 6059 |
| Stroke Inch | 7038 |
| Height | 6058 |
| Model | 6556 |
| Length | 6063 |
| Brand | Gabriel |
| Stroke | 196.34 mm. |
| MPN | 85906 |
| Color | Black |
| Width | 3.38 in. |
| VMRS | GBRLR |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Type / Style | Shock Absorber |
| Height | 26.75 in. |
| Global Trade Number | 43645924607 |
| Benefits | This FleetLine 85000 series heavy duty shock absorber is built with a best-in-class hydraulic stop which prevents the shocks from topping out and the suspension from over-extending itself. It also contains a chromed piston rod that protects against corrosion that makes for a long product life. It delivers maximum control, comfort and durability with it's 10-stage valving. The 85000 series has a larger bore size for harsher operating conditions as well as forged solid steel eye rings and 360 degree arc-welded end monts to reduce end mount failure. This specific shock absorber is 14 in. fully collapsed and 21.73 in. fully extended. The stroke size on this shock is 7.73 in. and the bore size is 1.625 in. |
Features
- FleetLine 85000 Series Heavy-Duty Cab Shock Absorber
- 14 in. to 21.73 in. Collapsed to Extended Length
- Best in class hydraulic stop prevents shocks from topping out and the suspension from over-extending itself
- Chromed Piston Rod protects against corrosion that makes for longer product life
- Delivers maximum control, comfort and durability with it's 10-stage valving
- Larger bore makes for a more durable shock in harsher operating conditions
- Forged solid steel eye rings and 360 degree arc-welded end mounts reduce end mount failures
- 7.73 in. Stroke Size
- 1.625 in. Bore Size
- 1 Year, 100,000 Mile Warranty
Includes
Includes One (1) Shock Absorber
Warranty
1 Year, 100,000 Mile Warranty
