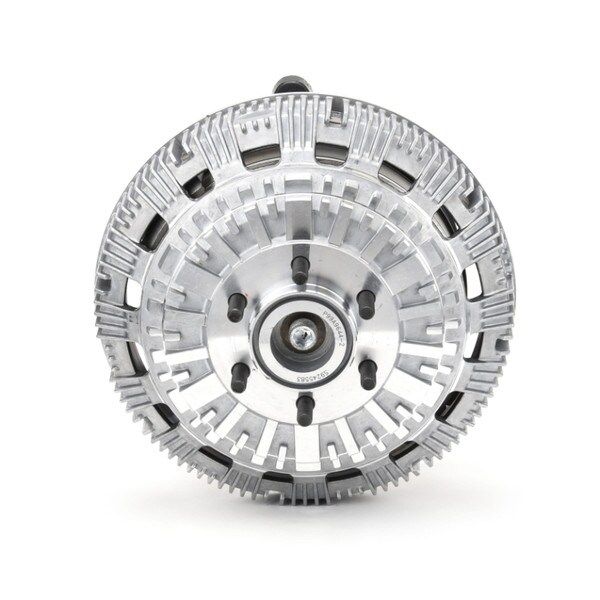

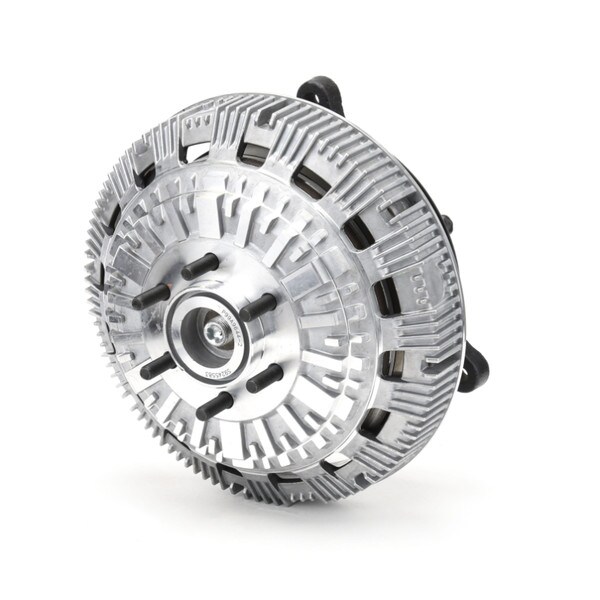

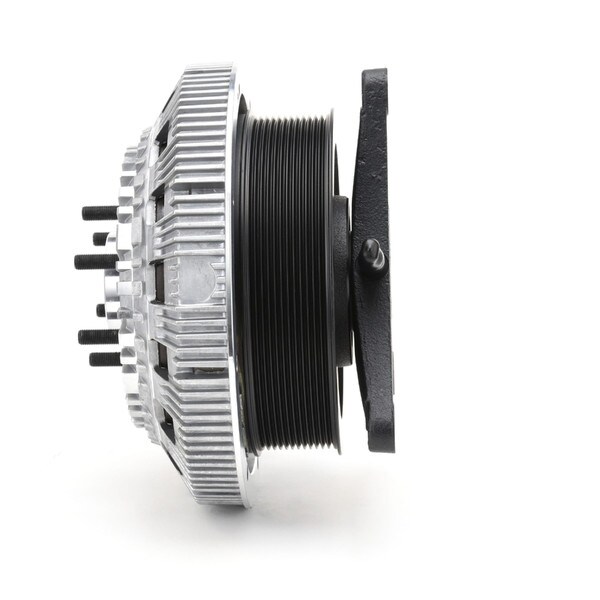

Horton DM Two-Speed Fan Clutch - 99A9644-2

Product Description

Keeping your engine running at an optimal temperature will reduce the chance of your vehicle overheating. When in need of engine cooling truck parts, turn to Horton- a leading brand in fan clutches and fan clutch components.

This Horton fan clutch is a two speed for Mack/Volvo trucks that features an overall length measurement of 6.12 inches and contains a 12PK belt configuration. Its belt groove location is 1.47 inches and it has a 3.5 inch bolt circle measurement. Center of JB to top right mounting hole measures 4.38 inches. Its horizontal mounting distance measures 6.725 inches and its vertical mounting distance measures 7.21 inches. Fan blade stud length measures 1.06 inches and its fan pilot diameter measures 2.55 inches. Back pulley diameter measures 7.87 inches.

This product comes with a one year warranty.

Horton is an industry leader in fan clutches and fan clutch accessories for semi-trucks, tractors and trailers. When shopping engine cooling parts for your big rig, choose to shop Horton!

Features

• Reliable engine-cooling solution
• For Heavy-duty applications
• Part of the industry's largest fan and fan drive product catalog

Includes

DM Advantage two-speed fan clutch

Warranty

1 year

Cross Reference

1000-799644-2, 10007996442, 20883819, 21192240, 21210845, 21596045, 21925087, 22113077, 3815975, 3912-79A96442, 391279A96442, 40MH4103M, 799644-2, 79A9552-2, 79A95522, 79A9643-2RMAN, 79A96432RMAN, 79A9644, 79A9644-2, 79A96442, 85115602, 85139329, 98A9644-2, 98A96442, 995522, 99A9552-2, 99A95522, 99A96442, ABPN20995522, FLT995522, HOR79A96442, RC7996442, ZBH79A96442
