Horton Wester Star DM Advantage Fan Clutch - 79A9560
Details
Product Description
Heavy-duty vehicle engines can get toasty after spending countless hours on the road; but with the help from fan clutches, the engine will stay at a cooler temperature that is optimal for driving long distances.

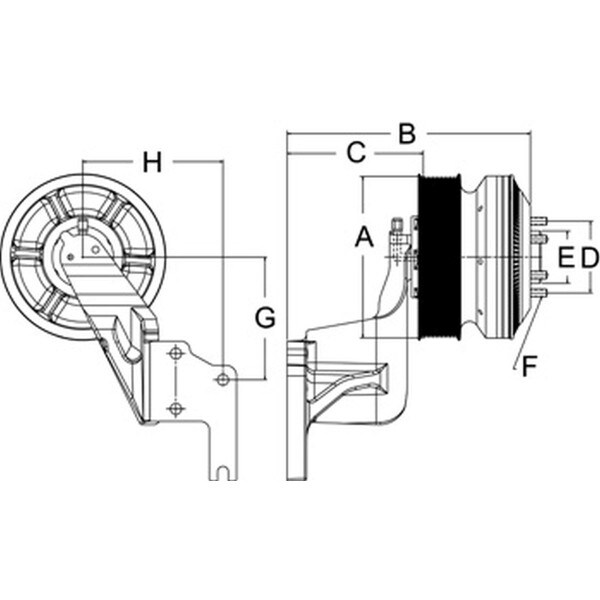

This DM Advantage On/Off and Two Speed Reman Fan Clutch is designed for Western Star vehicles (2010-2013) with Cummins ISX engines. It contains a stud thread size of .375-24 UNF and a fan blade stud length of .81 inches. Its bolt circle size measures at 3.5 inches and it offers a fan pilot diameter of 2.56 inches. Its vertical mounting distance measures 5.98 inches and its horizontal mounting distance measures 6.36 inches. Center Of Jb To Top Right Mounting Hole is 5.98 inches. Its back pulley diameter measures 7.83 inches while its front pulley diameter measures 0 inches. This external engine component contains a pulley belt configuration of 12 PK and it has a belt groove location of 6.65. Finally, it has an overall length measuring 12.6 inches.
This product's warranty ranges from 12-36 months depending on vocation and product type.
Horton is an industry leader in the field of clutches and engine system components. Since 1951, Horton has received global recognition for their reliable engine cooling fans that continue to help on-highway and off-highway vehicles safely operate on the road.
Features
- Designed for Western Star vehicles (2010-2013) with Cummins ISX engines
- Stud thread size of .375-24 UNF
- Fan blade stud length of .81 inches
- Bolt circle size measures at 3.5 inches
- Fan pilot diameter of 2.56 inches
- Vertical mounting distance measures 5.98 inches
- Horizontal mounting distance measures 6.36 inches
- Center Of Jb To Top Right Mounting Hole is 5.98 inches
- Back pulley diameter measures 7.83 inches
- Front pulley diameter measures 0 inches
- Pulley belt configuration of 12 PK
- Belt groove location of 6.65
- Overall length measuring 12.6 inches
Includes
One DM Advantage On/Off and Two Speed Reman Fan Clutch
Warranty
12-36 months depending on vocation and product type.
Cross Reference
Horton 79A9560 Cross References
10022998, 10023624, 79A9560, 98A9560, 99560, 99A9560, HOR 98A9560, HOR98A9560
Specifications
| Brand | Horton |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | This DM Advantage On/Off and Two Speed Reman Fan Clutch is designed for Western Star vehicles (2010-2013) with Cummins ISX engines. It contains a stud thread size of .375-24 UNF and a fan blade stud length of .81 inches. Its bolt circle size measures at 3.5 inches and it offers a fan pilot diameter of 2.56 inches. Its vertical mounting distance measures 5.98 inches and its horizontal mounting distance measures 6.36 inches. Center Of Jb To Top Right Mounting Hole is 5.98 inches. Its back pulley diameter measures 7.83 inches while its front pulley diameter measures 0 inches. This external engine component contains a pulley belt configuration of 12 PK and it has a belt groove location of 6.65. Finally, it has an overall length measuring 12.6 inches. |
