Webb 10 Bolt 1.19 in. Wheel Drum - 66660B

SKU 66660B
$1,818.26
(0) No Reviews yet

Details

Product Description

Your wheel end and brake components may be failing if you feel vibrations in the steering wheel and/or brake pedal. Failing parts, such as wheel hubs, could also be the result of weak wheel bearings that are either too old or contaminated by elements such as water or dirt. When in need of replacement wheel and brake parts for your big rig, choose to buy Webb Wheel!

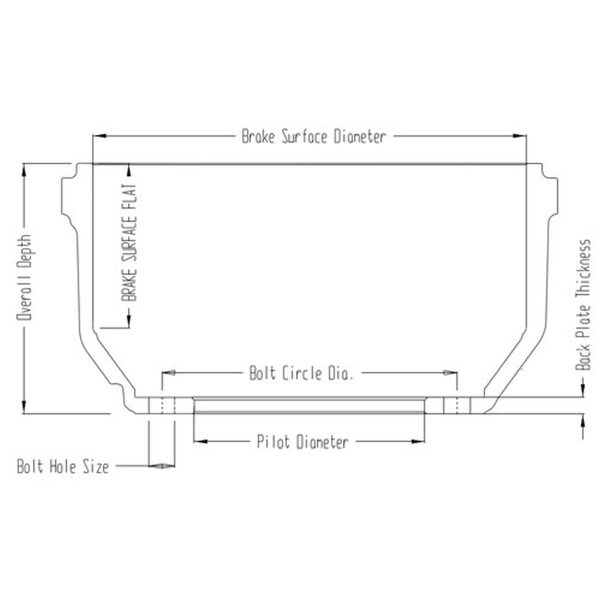

This wheel drum is designed for heavy-duty applications. This "K" drum with outboard mount contains a brake shoe width of 7 inches and back plate thickness of .62 inches. Its brake surface diameter measuring 16.5 inches with a brake surface flat measurement of 7.38 inches. Its overall depth measures 10.37 inches and its pilot diameter measures 8.78 inches, as well. Lastly, it features a bolt circle diameter of 11.25 inches with 10 bolt holes that are 1.19 inches in size and offers a maximum wear diameter measuring 16.62 inches.

Length of warranty depends on product and application type. Most calipers, for example, come with a two year warranty. Contact us to learn more.

For over seven decades, Webb Wheel has been a top choice for wheel end customers; and it's no wonder why. Webb offers quality aftermarket wheel hubs, calipers and other wheel parts for all kinds of heavy-duty trucks and trailer applications at affordable costs. Webb is best known for their Vortex‚® brake drums; LifeShield‚3/4‚ protection products; and Air disc brakes. When looking for replacement wheel end parts for your heavy-duty everything, shop Webb Wheel!


Features

  • Outboard mount
  • Brake shoe width of 7 inches
  • Back plate thickness of .62 inches
  • Brake surface diameter measuring 16.5 inches
  • Brake surface flat measurement of 7.38 inches
  • Overall depth measures 10.37 inches
  • Pilot diameter measures 8.78 inches
  • Bolt circle diameter of 11.25 inches
  • 10 bolt holes
  • 1.19 inches in size
  • Maximum wear diameter measuring 16.62 inches

Includes

Drum Only


Warranty

1 Year, 100,000 Mile Warranty


Cross Reference

126831, 16660, 2335-66660B, 233566660B, 61306WE, 6HD375, 816446, DR66660B, EODR66660B, W66660B, WB66660B, WE66660, WE66660B, WEB66660B, WW61306WE, WWD66660B, WWP66660B, X-61306, X61306, XX61306WE


Specifications

Depth10.37 in.
BrandWebb Wheel
MPN66660B
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Type / StyleOutboard
BenefitsOutboard mount. Brake shoe width of 7 inches. Back plate thickness of .62 inches. Brake surface diameter measuring 16.5 inches. Brake surface flat measurement of 7.38 inches. Overall depth measures 10.37 inches. Pilot diameter measures 8.78 inches. Bolt circle diameter of 11.25 inches. 10 bolt holes. 1.19 inches in size. Maximum wear diameter measuring 16.62 inches.

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
