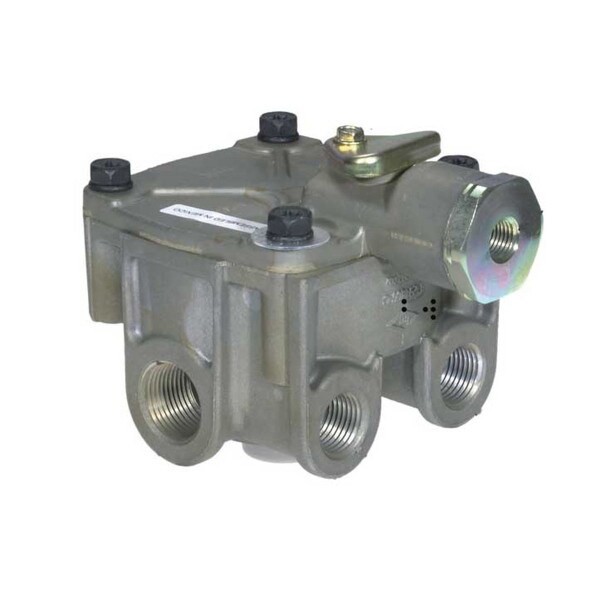

Bendix R-14 Universal Brake Relay Valve - 103294N
Cross References
103294, 103294BXW, 103294N, 103294X, 10520893, 11230506, 3918399, 6301025, 745-103294N, 745103294N, BAN103294N, BBH-103294CX, BBH103294CX, BEN103294N, BND103294N, BW103294, BW103294N, BWBW103294, BX103294N, BX103294X, R955103294, R955103294X, TWDBEN103294N
Specifications
| Delivery Port | 0.5 in. - NPT |
| Repair Kit | 102802N |
| Supply Port | 8528 |
| Crack Pressure | 4434 |
| Series | 8500 |
| Brand | Bendix |
| Supersedes | 103294 |
| MPN | 103294N |
| Color | Grey |
| VMRS | 13-010-009 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
Specifications
| Item-Level GTIN: | 4068078349168 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Relay Valve |
| Balance / Primary Service Port: | 1/8-27 Npt (With Cover) |
| Body Configuration: | 2 Sup / 2 Del (H) |
| Cautionary Note(S): | Not Applicable To This Part |
| Control / Secondary Service Port: | 1/4-18 Npt |
| Control Port Orientation (Cw From Front Face): | 0Adeg |
| Crack Pressure: | 5.5 Psi |
| Delivery Port 1: | 1/2-14 Npt |
| Delivery Port 2: | 1/2-14 Npt |
| Delivery Port 3: | Not Applicable To This Part |
| Delivery Port 4: | Not Applicable To This Part |
| Delivery Port 5: | Not Applicable To This Part |
| Delivery Port 6: | Not Applicable To This Part |
| Delivery Port 7: | Not Applicable To This Part |
| Delivery Port 8: | Not Applicable To This Part |
| Exhaust Port: | Dust Shield |
| Internal Supply Passage To Cover: | Not Applicable To This Part |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | .96 In X .40 In Slot (4X) |
| Mounting Bracket Direction: | Not Applicable To This Part |
| Mounting Bracket Location: | Loose In Box |
| Mounting Orientation (Cw From Front Face): | Not Applicable To This Part |
| Supply Port 1: | 3/4-14 Npt |
| Supply Port 2: | 3/4-14 Npt |
| Tmc Washer: | Rv055 |
