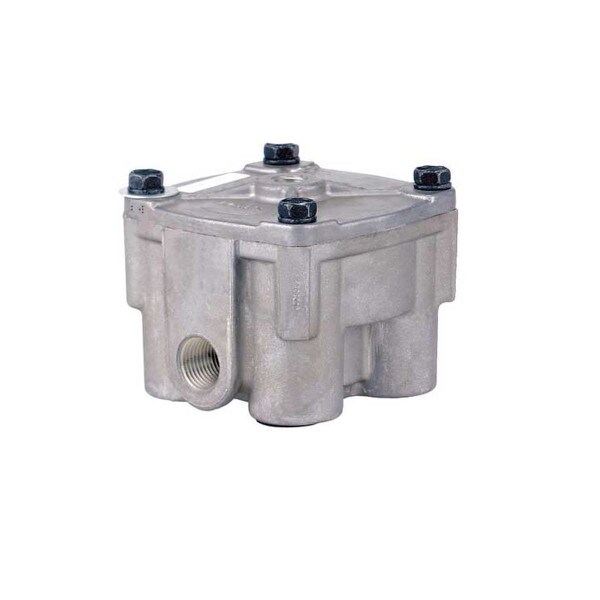

Bendix R-12 relay valve - 102626N
Details
Air brake parts can fail after miles of overuse - usually from tapping brakes on steep inclines that lead to overheating. Brake parts including brake pads, camshafts and relay valves can be replaced after 30,000+ miles. While some parts may last longer, it is important to always perform routine maintenance to care for the components that make up air brake systems. When in need of replacement parts, turn to Bendix, a trusted leader in air brake technology.

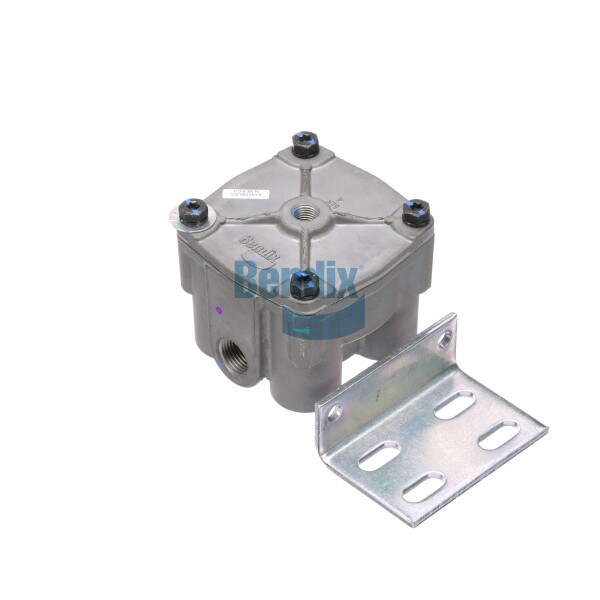

Serves as a relay station that speeds up the application and release of the brakes. Designed for either reservoir or frame mounting and available in two body styles. Comes with a universal mounting bracket to easily interchange it with other Bendix relay valves.
This product comes with a one year warranty.
Bendix Commercial Vehicle Systems (Bendix) is a leading innovator in air brake system technology for medium and heavy-duty commercial vehicles. Trust Bendix when in need of replacement air brake parts for Freightliners, Mack, Volvo, Peterbilt and other big rigs!
Cross References
102279, 102281, 102626, 102626 B1094W, 102626B1094W, 102626N, 102626R, 102626RX, 102794, 103199, 103201, 107442, 107443, 2097615, 227355, 227356, 227357, 289859P, 42000101, 745-102626N, 745102626N, 745102626X, 800636, AV102626, BW 102626N, BW102626, BW102626N, BW800636, BWR12, BX102626, BX102626XC5, C102626, EBN102626N, K044680, OR102626, OR102626X, OTR102626, OTR28510, OTR289859, P800636, R955102626, R955102626N, RA86477, 102626
Specifications
| Item-Level GTIN: | 4068078434963 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Relay Valve |
| Balance / Primary Service Port: | Not Applicable To This Part |
| Body Configuration: | 1 Sup / 4 Del (V) |
| Cautionary Note(S): | Not Applicable To This Part |
| Control / Secondary Service Port: | 1/4-18 Npt |
| Control Port Orientation (Cw From Front Face): | Not Applicable To This Part |
| Crack Pressure: | 4.0 Psi |
| Delivery Port 1: | 1/2-14 Npt |
| Delivery Port 2: | 1/2-14 Npt |
| Delivery Port 3: | 1/2-14 Npt |
| Delivery Port 4: | 1/2-14 Npt |
| Delivery Port 5: | Not Applicable To This Part |
| Delivery Port 6: | Not Applicable To This Part |
| Delivery Port 7: | Not Applicable To This Part |
| Delivery Port 8: | Not Applicable To This Part |
| Exhaust Port: | Dust Shield |
| Internal Supply Passage To Cover: | Not Applicable To This Part |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | .96 In X .40 In Slot (4X) |
| Mounting Bracket Direction: | Not Applicable To This Part |
| Mounting Bracket Location: | Loose In Box |
| Mounting Orientation (Cw From Front Face): | Not Applicable To This Part |
| Supply Port 1: | 1/2-14 Npt |
| Supply Port 2: | Not Applicable To This Part |
| Tmc Washer: | Rv040 |
