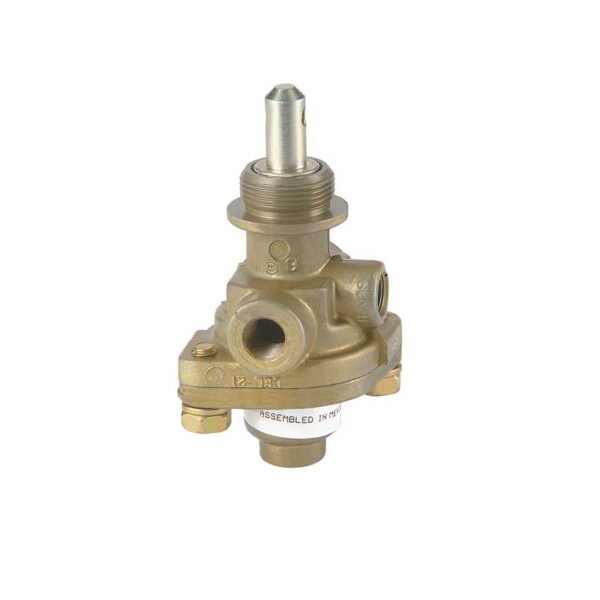

Bendix PP-1 Brake Control Valve - 275176N
Cross References
275176, 275176N, 276567, 276567P, 276567X, 277717, 279761, 284726, 287379, 287515, 287620, 48276567P, 745-275176N, 745275176, 745275176N, 76567, 778540, 87379, 87515, 980609, BAN275176N, BE275176, BE276567, BE276567X, BE277717, BE279761, BE284726, BE287379, BEBXPP1, BEN275176, BEN275176N, BEPP1, BH275176, BH276567X, BP275176, BW275176, BW275176N, BW276567, BW276567X, BW284726, BWBW275176, BWR276567, BX275176N, BX276567, BX276567X, BX287515, BX287620, BXPP1, BXR276567, BXR276567X, BXR287515, BXR287620, BXX276567, KN20021, MIKN20021, N275176, R276567, R276567X, R287379, R287515, R287620, RKN20021, TWDBEN275176N, X276567
Specifications
| Repair Kit | 281126N |
| Supply Port | 8504 |
| Series | 8522 |
| Brand | Bendix |
| Supersedes | 275176 |
| MPN | 275176N |
| VMRS | 13-010-016 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
Specifications
| Item-Level GTIN: | 4068078431849 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Control Valve |
| Automatic Release Pressure: | 40 Psi |
| Button Color: | Black (Red Band) |
| Button Shape: | Round |
| Button Text: | Pull To Park | Parking Brake | Push To Release |
| Button(S) Included: | Yes |
| Control (Pilot / Aux) Port: | Not Applicable To This Part |
| Delivery Port 1: | 1/8-27 Npt |
| Delivery Port 2: | 1/8-27 Npt |
| Dial Included: | No |
| Exhaust Port: | 1/8-27 Npt |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | 7/8-20 Unef-2A |
| Mounting Nut Included: | Yes |
| Pilot Trip Pressure: | Not Applicable To This Part |
| Plunger / Button Height: | 1.59 In |
| Plunger Diameter: | A~ .374 In |
| Rubber Boot Included: | No |
| Supply Port: | 1/8-27 Npt |
| Trailer Override Pressure: | Not Applicable To This Part |
| Vmrs Code 2: | 013-010-017 |
| Vmrs Code 3: | 013-010-049 |
| Vmrs Description 2: | Parking Valve - Hand Brake, Air |
| Vmrs Description 3: | Parking Valve - Tractor |
