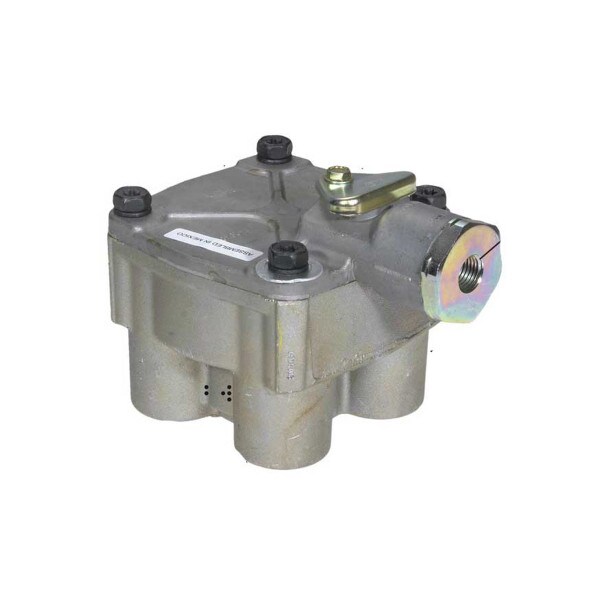

Bendix R-14 Universal Brake Relay Valve - 106325N
Cross References
106325, 106325BXW, 106325N, 745-106325N, 745106325N, BAN106325N, BEN106325N, BW106325N, BX106325N, TWDBEN106325N
Specifications
| Item-Level GTIN: | 4068078348017 |
| EXPI Data (Country of Origin): | Mx |
| Item Quantity Size UOM: | Ea |
| Description (Long Product Description): | Relay Valve |
| Balance / Primary Service Port: | 1/8-27 Npt (With Cover) |
| Body Configuration: | 2 Sup / 2 Del (H) |
| Cautionary Note(S): | Not Applicable To This Part |
| Control / Secondary Service Port: | 1/4-18 Npt |
| Control Port Orientation (Cw From Front Face): | 90Adeg |
| Crack Pressure: | 5.5 Psi |
| Delivery Port 1: | 1/2-14 Npt |
| Delivery Port 2: | 1/2-14 Npt |
| Delivery Port 3: | Not Applicable To This Part |
| Delivery Port 4: | Not Applicable To This Part |
| Delivery Port 5: | Not Applicable To This Part |
| Delivery Port 6: | Not Applicable To This Part |
| Delivery Port 7: | Not Applicable To This Part |
| Delivery Port 8: | Not Applicable To This Part |
| Exhaust Port: | Dust Shield |
| Internal Supply Passage To Cover: | Not Applicable To This Part |
| Market Indicator: | Aftermarket New |
| Maximum Operating Temperature: | 200 Adegf (93 Adegc) |
| Minimum Operating Temperature: | -40 Adegf (-40 Adegc) |
| Mounting: | A~ .656 In |
| Mounting Bracket Direction: | Down |
| Mounting Bracket Location: | Above Cover |
| Mounting Orientation (Cw From Front Face): | 180Adeg |
| Supply Port 1: | 1/2-14 Npt |
| Supply Port 2: | 1/2-14 Npt (Plugged) |
| Tmc Washer: | Rv055 |
