Bendix TF-501 Reman Air Compressor - 103274X

Product Description

Air compressors and the systems around help pump clean air that powers various aspects in the trucks undercarriage, one of the biggest being your truck's air brake system. It's important to properly maintain every part of your truck's compressor so that it can correctly feed pressurized air into all of the various parts of the truck.

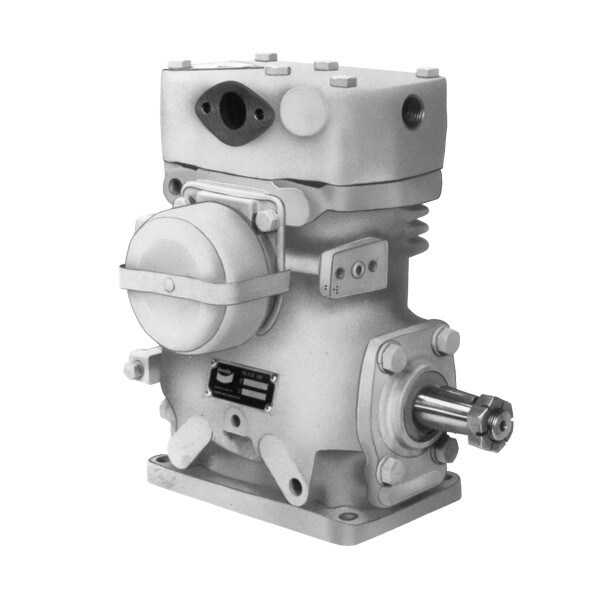

This Bendix TU-FLO 501 Series Air Compressor is a two cylinder, single stage compressor with a rated displacement output of 12 CFM at 1250 RPM. It's designed for flange mounting and has a threaded discharge type. The inlet port is located on the left of the compressor, while the discharge port is located on the top of the compressor. This compressor is for Caterpillar engine applications.

These Air Compressors are under warranty for 2 years or 200,000 miles. This particular product is a remanufactured product. Save money when sending back the core of the product upon purchase. Buying reman products are also beneficial to the environment.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• TU-FLO 501 Series Air Compressor
• Two Cylinder Single Stage
• Rated Displacement at 12 CFM at 1250 RPM
• Flange Mounting
• Threaded Discharge Type
• Remanufactured
• 2 Year, 200,000 Mile Warranty
• Left Inlet Port Placement, Top Discharge Port Placement

Includes

One (1) Remanufactured Air Compressor

Warranty

2 Year, 200,000 Mile Warranty

Cross Reference

0R2902, 103167, 103167X, 103273, 103274, 103274BXR, 103274N, 103274X, 107535, 107835, 108209, 13200X, 1N2995, 1N2995X, 4W6425, 4W6425X, 5396-103274X, 5396103274X, 700010029, 767653021584, 7E7740, BBH-103274, BBH103274, BE103167, BE103274, BE103274X, BEEL13200X, BG103274X, BN103274X, BV103274, BW103167, BW103274, BW103274X, BWBWR103274, BWR103274, BWR103274X, BX103167, BX103167X, BX103273, BX103274, BX103274X, BX107535, BX108209, BXEL13200X, BXR103167, BXR103274, BXR103274X, BXX103274, CT1N2995X, CT4W6425X, D103274X, E-BN103274X, EBN103274X, EL13200, EL13200X, EUEBN103274X, FVBWR103274, H103274X, H2103274X, HDX103274X, KNT13200X, MB103274X, MBEL13200X, MBI103274X, MBKNT13200X, MD103274X, MDEL13200X, MI103274X, MID103274X, N103274X, NT7020, OR2902, P103274, R103167, R103274, R103274X, R107535, R955103274X, T13200X, TWDH103274X, V1093102, X103274, ZZ103274X, ZZEL13200X

Specifications
