Bendix PL-30 Manual Slack Adjuster - 101215N

Product Description

Slack adjusters, whether manual or automatic, are used as levers to form the connection between actuators and camshafts and help to maintain consistent stroke of the actuator. Slack adjusters should be greased every six months and may need to be replaced every four to five years based on the application. When in need of replacement slack adjusters, turn to Bendix!

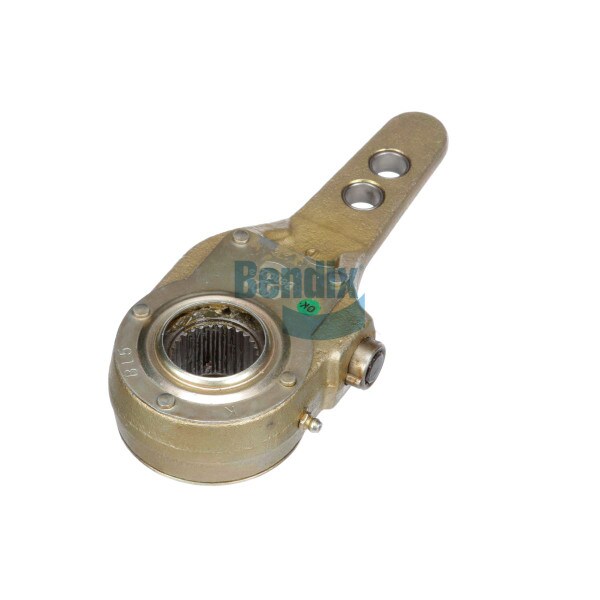

This PL-30 manual slack adjuster is designed for air brake systems. It contains a bushing diameter measurement of .625 inches. It offers a spline diameter measurement of 1.5 inches and a spline count of 28. With a .5 inches clevis thread diameter, and straight arm, its arm length measures 5, 6 7 inches. Its max torque rating is 30,000 pounds.

Warranty is between 1-3 years based on product and type of operation. Contact us to learn more.

Bendix is an industry name truckers trust! The Bendix brand has a full catalog of commercial vehicle safety technologies and air brake system parts for the heavy-duty tucking industry servicing trucks, tractors, trailers and buses. When in need of quality aftermarket air system components, turn to Bendix, a member of Knorr-Bremse!

Features

• Bushing diameter measurement of .625 inches
• Spline diameter measurement of 1.5 inches
• Spline count of 28
• .5 inches clevis thread diameter
• Straight arm
• Arm length measures 5, 6 7 inches
• Max torque rating is 30,000 pounds

Includes

PL-30 manual slack adjuster

Warranty

Warranty is between 1-3 years based on product and type of operation. Contact us to learn more.

Cross Reference

101207, 101215, 101215N, 10355HD, 18531, 382458HD, 458HD, 52028, 52128, 52328, 61941, 745-101215N, 82069, A3275X596, A43275X596, E-2458HD, KN44051, L1308, R823002
