MGM C24L Air Brake Chamber -1427717
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.
This C24L air disc brake is designed for heavy-duty commercial vehicles. C models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield (except Type 12 and 16). This long stroke C model air brake chamber contains a 2.5 inch stroke; a M16 X 1.5 inch mounting bolt thread and a 1.68 mounting bolt length. Service size is 24. Its "A" measurement is 4.88 inches; "B" measurement is 7.33 inches; "C" measurement is 4.75 inches and "D" measurement is M16 x 1.5-6g inches. Inlets measure at 3/8 inches - 18 NPTF and XB measures at 15 millimeters, as well.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- 2.5 inch stroke
- M16 X 1.5 inch mounting bolt thread
- 1.68 mounting bolt length
- Service size is 24

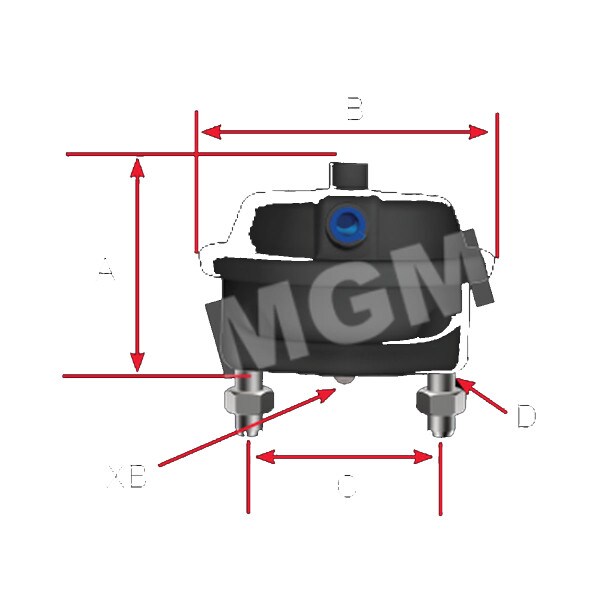

- "A" measurement is 4.88 inches
- "B" measurement is 7.33 inches
- "C" measurement is 4.75 inches
- "D" measurement is M16 x 1.5-6g inches
- Inlets measure at 3/8 inches - 18 NPTF
- XB measures at 15 millimeters
Includes
C24L air disc brake
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
C893276X24, MGM 1437717
Specifications
| Brand | mgm brakes |
| Model Number | C24L |
| MPN | 1427717 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This C24L air disc brake is designed for heavy-duty commercial vehicles. C models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield (except Type 12 and 16). This long stroke C model air brake chamber contains a 2.5 inch stroke; a M16 X 1.5 inch mounting bolt thread and a 1.68 mounting bolt length. Service size is 24. Its "A" measurement is 4.88 inches; "B" measurement is 7.33 inches; "C" measurement is 4.75 inches and "D" measurement is M16 x 1.5-6g inches. Inlets measure at 3/8 inches - 18 NPTF and XB measures at 15 millimeters, as well. |
