Stemco AIR BAG - 1R12-432
Details
Perfect for your semi-truck, the Stemco AIR BAG - 1R12-432 was designed to be the replacement part you've been looking for.
Made using long lasting and reliable materials, the Stemco AIR BAG - 1R12-432 will provide you with years of durability and impeccable use.
Warranty information may be based on the product and application. Please contact us for additional information.
For an excellent way to make sure your commercial vehicle is running at peak condition, choose the Stemco AIR BAG - 1R12-432.
Cross References
1DF23I-P1067, 1DF23IP1067, 1R12 432, 1R12-1077, 1R121077, 1R12432, 2514460C1, 350243C94, 352-1191, 3541731C1, 39875 KPP, 39875KPP, 42040454, 4521191L, 570 1R12432, 570 GY1R12432, 655 3541731C1, 66909, 73746, 74846, 75058, 76030, 77582, 81067, 8889, 910B1-95P889, 910B195P889, 9875, AB1DF23I-P1067, AB1DK23R-1731, APL-100143, AS-8889, AS-9875, AS10663, AS10673, AS1191, AS78659, AS81067, AS9875, AS9875B, ASP8890, FLT1R12432, FRL 42040454, FS1191, FS9875, FSIW013581191, GBH1R12432, GY-1R12432, GY1R12-432, GY1R12432, GYR1R12432, HDV9875, NPT 1R12-432, RC9MR18 1191, RC9MR181191, RF990918923, S-22471, U29 1R12432, W01-358-1191, W01-358-9875, W013581191, W013589875, WA01-1191, WA01-9875
Specifications
| Brand | stemco inc |
| Supersedes | AS9875 |
| MPN | 1R12-432 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | Built using high-quality, reliable materials. |

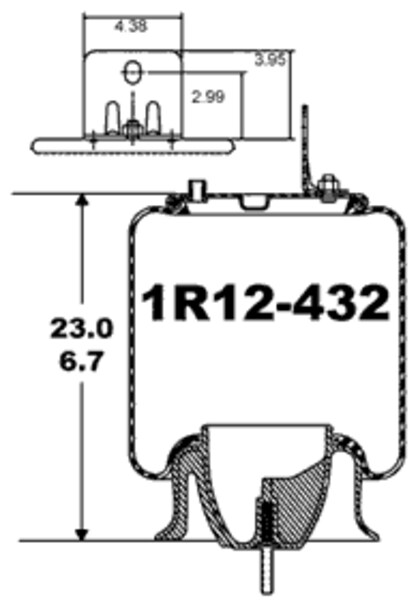

Features
- Top Plate Hole/Stud: 4
- Bottom Plate Hole/Stud: 1
- Top Plate Diameter: 9
- Bottom Plate Diameter: 10
- Collapsed Height: 6.7
- Flexmember: 566-24-3-066
- Piston: 566-20-7-236
- Piston Type: C
- Goodyear Trimmed: 1R12432
